Compact Power Transformers - Triad Quick Pack Series
Compact Power Transformers - Triad Quick Pack Series
SKU:POW-820847
Efficient and compact Chassis Mount Power Transformers for diverse applications. Bobbin wound for reduced size with reliable thermal performance up to 130 °C.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Compact Power Transformers - Triad Quick Pack Series
$29.99
Quantity: 1
Claim Your Seller Account
Compact Power Transformers - Triad Quick Pack Series
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience the Triad Quick Pack™ Chassis Mount Power Transformers, designed for maximum efficiency in a compact size. These transformers offer a significant reduction in weight and size without compromising performance, making them ideal for diverse applications. With bobbin wound construction and split bobbin nonconcentric winding, these transformers eliminate costly electrostatic shielding. The terminal design allows for quick connects or soldering, while the Class B insulation and Hi-pot testing ensure reliable operation up to 130 °C. Upgrade to Triad Quick Pack for space-saving and high-performance power solutions.
Product Specifications
Specifications Dimension A
1 11/16 in
Specifications Dimension B
11/16 in
Specifications Electrical Rating
6.0 V·A
Specifications Height H
1 3/8 in
Specifications Length L
2 3/8 in
Specifications Mounting Hole Size
3/16 in
Specifications Mounting Length
2 in
Specifications Output Rating
36.0 V CT at 0.17 A
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V
Specifications Transformer Contact Type

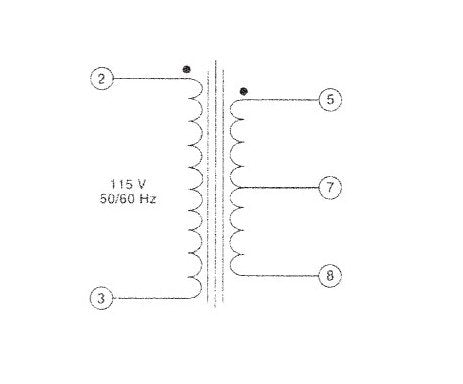

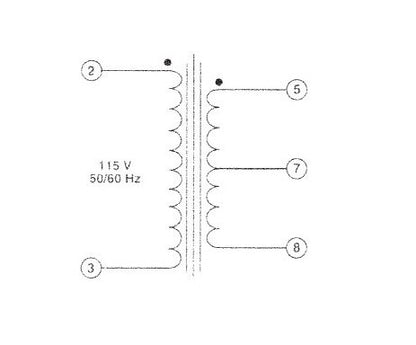

Center Tap
Specifications Type
Single Primary
Specifications Weight
0.40 lb
Specifications Width W
1 1/4 in
Technical Notes 0
Hi-pot tested at 2,500 VRMS.Class B insulation for maximum temperature of 130 ºC.Terminal size is 0.187" x 0.021".
