Compact Power Transformers - Triad Quick Pack⢠Series
Compact Power Transformers - Triad Quick Pack⢠Series
SKU:POW-a6dcd9
Compact, lightweight, and efficient power transformers for diverse applications. Bobbin wound with split bobbin nonconcentric winding for reduced size and cost savings.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
Compact Power Transformers - Triad Quick Pack⢠Series
$34.99
Quantity: 1
Claim Your Seller Account
Compact Power Transformers - Triad Quick Pack⢠Series
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Chassis Mount Quick Pack⢠Power Transformers from Triad offer exceptional size and weight reduction without compromising on performance. Designed for versatility, these transformers come in six sizes to suit various applications. Bobbin winding ensures compactness and efficient use of space, while the split bobbin nonconcentric winding eliminates the need for costly electrostatic shielding. With termination options for quick connects or soldering, these transformers are both practical and efficient. Hi-pot tested at 2,500 VRMS and featuring Class B insulation for a maximum temperature of 130 ºC, these transformers ensure reliability and safety in operation. The Triad Quick Pack⢠series is ideal for applications requiring compact yet powerful transformers.
Product Specifications
Specifications Dimension A
1 5/8 in
Specifications Dimension B
9/16 in
Specifications Electrical Rating
2.4 V·A
Specifications Height H
1 3/16 in
Specifications Length L
2 1/16 in
Specifications Mounting Hole Size
3/16 in
Specifications Mounting Length
1 3/4 in
Specifications Output Rating
56.0 V CT at 0.045 A
Specifications Primary Frequency
50 Hz | 60 Hz

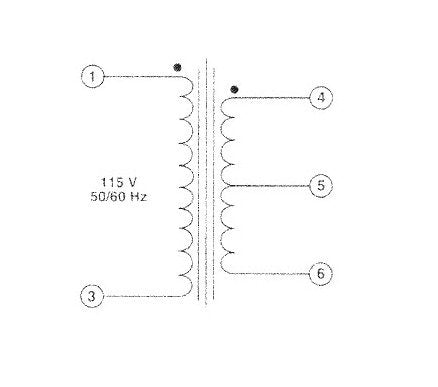

Specifications Primary Voltage
115 V
Specifications Transformer Contact Type
Center Tap
Specifications Type
Single Primary
Specifications Weight
0.30 lb
Specifications Width W
1 3/16 in
Technical Notes 0
Hi-pot tested at 2,500 VRMS.Class B insulation for maximum temperature of 130 ºC.Terminal size is 0.187" x 0.021".
