Compact Power Transformers - Triad Quick Pack⢠Series
Compact Power Transformers - Triad Quick Pack⢠Series
SKU:POW-f6edf5
Enhance efficiency with Triad Quick Pack⢠Power Transformers - compact, reliable, and cost-effective.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
Compact Power Transformers - Triad Quick Pack⢠Series
$45.99
Quantity: 1
Claim Your Seller Account
Compact Power Transformers - Triad Quick Pack⢠Series
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience the unparalleled efficiency and compact design of the Triad Quick Pack⢠Power Transformers. Featuring a reduced size and weight without compromising performance, these bobbin-wound transformers are ideal for a wide range of applications. The split bobbin nonconcentric winding eliminates the need for costly electrostatic shielding, making installation a breeze. With Class B insulation and hi-pot tested at 2,500 VRMS, these transformers ensure reliable operation at a maximum temperature of 130 ºC.
Product Specifications
Specifications Dimension A
2 5/16 in
Specifications Dimension B
1 1/16 in
Specifications Electrical Rating
30.0 V·A
Specifications Height H
1 15/16 in
Specifications Length L
3 1/4 in
Specifications Mounting Hole Size
3/16 in
Specifications Mounting Length
2 13/16 in
Specifications Output Rating
56.0 V CT at 0.54 A
Specifications Primary Frequency
50 Hz | 60 Hz

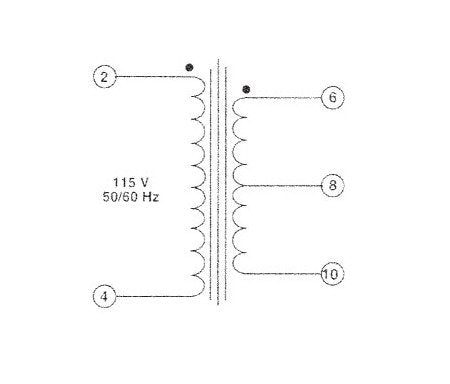

Specifications Primary Voltage
115 V
Specifications Transformer Contact Type
Center Tap
Specifications Type
Single Primary
Specifications Weight
1.10 lb
Specifications Width W
1 11/16 in
Technical Notes 0
Hi-pot tested at 2,500 VRMS.Class B insulation for maximum temperature of 130 ºC.Terminal size is 0.187" x 0.021".
