Compact Power Transformers - VA 56.0
Compact Power Transformers - VA 56.0
SKU:POW-1fecd7
Upgrade to Triad Chassis Mount Quick Pack⢠Power Transformers for compact, reliable power solutions.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Compact Power Transformers - VA 56.0
$59.99
Quantity: 1
Claim Your Seller Account
Compact Power Transformers - VA 56.0
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your power infrastructure with the Triad Chassis Mount Quick Pack⢠Power Transformers. These transformers offer compact bobbin wound designs, reducing size and weight while ensuring efficient operation. With an output rating of 12.6 V CT at 4.0 A, these transformers are optimized for a wide range of applications. Featuring Class B insulation for high-temperature resilience and hi-pot tested at 2,500 VRMS, they meet stringent industry standards for reliability and performance. The center tap transformer contact type and compatibility with quick connects or soldering make installations hassle-free and convenient.
Product Specifications
Specifications Dimension A
2 11/16 in
Specifications Dimension B
1 1/16 in
Specifications Electrical Rating
56.0 V·A
Specifications Height H
2 1/4 in
Specifications Length L
3 11/16 in
Specifications Mounting Hole Size
3/16 in
Specifications Mounting Length
3 1/8 in
Specifications Output Rating
12.6 V CT at 4.0 A
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V

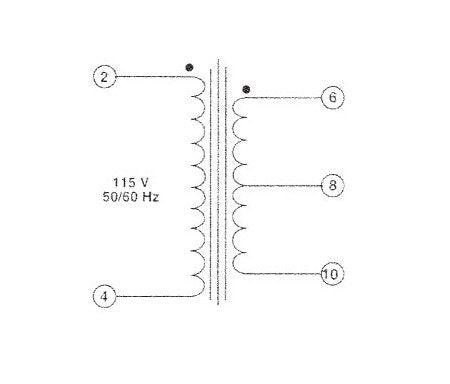

Specifications Transformer Contact Type
Center Tap
Specifications Type
Single Primary
Specifications Weight
1.70 lb
Specifications Width W
1 13/16 in
Technical Notes 0
Hi-pot tested at 2,500 VRMS.Class B insulation for maximum temperature of 130 ºC.Terminal size is 0.187" x 0.021".
