Compact Power Transformers with Quick Connect Terminals

Compact Power Transformers with Quick Connect Terminals

POW-a3dc02

Revolutionize power distribution with compact Chassis Mount Quick Pack™ Power Transformers.

$89.99
$89.99
Sale

Initiate Order

Compact Power Transformers with Quick Connect Terminals

Compact Power Transformers with Quick Connect Terminals

$89.99

Quantity: 1

Claim Your Seller Account

Compact Power Transformers with Quick Connect Terminals

Compact Power Transformers with Quick Connect Terminals

$89.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Chassis Mount Quick Pack™ Power Transformers offer a revolutionary reduction in size and weight without compromising performance. Designed for a wide range of applications, these bobbin-wound transformers feature split bobbin nonconcentric winding for cost-effective electrostatic shielding. With a 56.0 V·A electrical rating and 36.0 V CT at 1.5 A output rating, these transformers deliver efficient power distribution. Hi-pot tested at 2,500 VRMS and Class B insulation for a maximum temperature of 130°C, these transformers ensure reliable operation in diverse environments. Suitable for quick connects or soldering, they provide convenience and flexibility in installation.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Specifications Dimension A
2 11/16 in
Specifications Dimension B
1 1/16 in
Specifications Electrical Rating
56.0 V·A
Specifications Height H
2 1/4 in
Specifications Length L
3 11/16 in
Specifications Mounting Hole Size
3/16 in
Specifications Mounting Length
3 1/8 in
Specifications Output Rating
36.0 V CT at 1.5 A

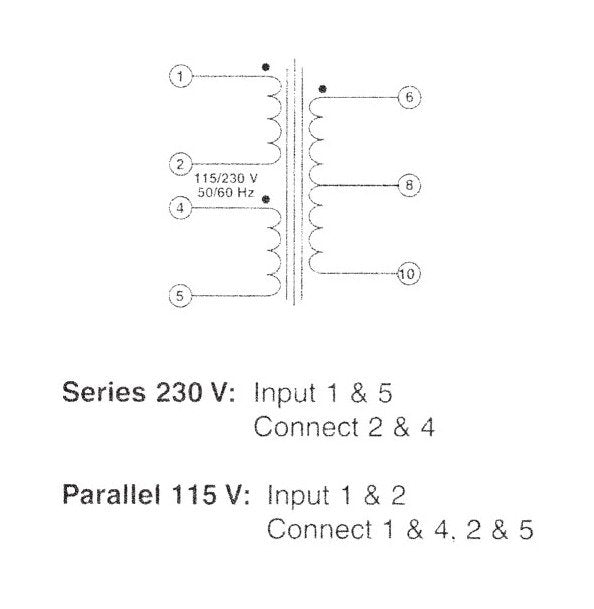

Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Transformer Contact Type
Center Tap
Specifications Type
Dual Primary
Specifications Weight
1.70 lb
Specifications Width W
1 13/16 in
Technical Notes 0
Hi-pot tested at 2,500 VRMS.Class B insulation for maximum temperature of 130 ºC.Terminal size is 0.187" x 0.021".
