Compact Chassis Mount Quick Pack™ Power Transformers with space-saving design and high efficiency for varied applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Compact Power Transformers with Split Bobbin Winding
$29.99
Quantity: 1
Claim Your Seller Account
Compact Power Transformers with Split Bobbin Winding
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

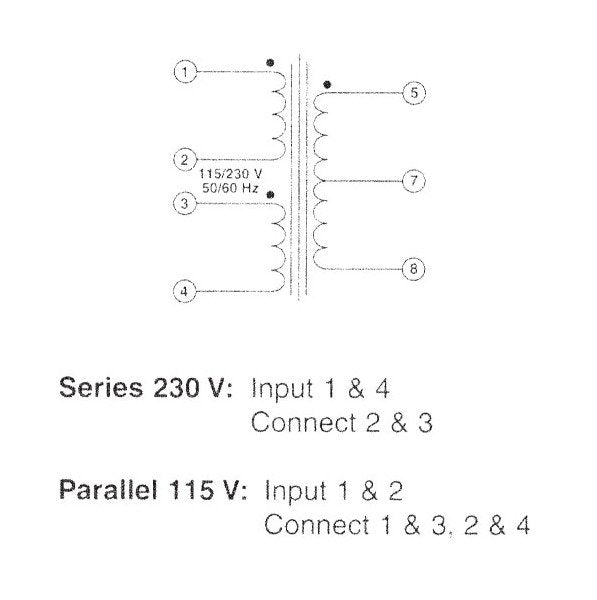

Experience the efficiency of the Chassis Mount Quick Pack™ Power Transformers, featuring a compact design that reduces size and weight without compromising VA rating. Bobbin wound with split bobbin nonconcentric winding for space optimization and cost-efficiency. The transformer offers an electrical rating of 12.0 V·A and a center-tap output rating of 24.0 V CT at 0.5 A. With dual primary type, Class B insulation, and hi-pot tested at 2,500 VRMS, this transformer meets stringent industry standards while ensuring reliable performance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Dimension A
1 15/16 in
Specifications Dimension B
13/16 in
Specifications Electrical Rating
12.0 V·A
Specifications Height H
1 5/8 in
Specifications Length L
2 13/16 in
Specifications Mounting Hole Size
3/16 in
Specifications Mounting Length
2 3/8 in
Specifications Output Rating
24.0 V CT at 0.5 A
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Transformer Contact Type
Center Tap
Specifications Type
Dual Primary
Specifications Weight
0.70 lb
Specifications Width W
1 3/8 in
Technical Notes 0
Hi-pot tested at 2,500 VRMS.Class B insulation for maximum temperature of 130 ºC.Terminal size is 0.187" x 0.021".
