The Chassis Mount Quick Pack⢠Power Transformers from the Triad Quick Pack series are engineered to deliver high performance in a compact form factor, offering a significant reduction in size and weight without compromising on power output. These transformers come in six versatile sizes to suit a wide range of applications, featuring bobbin wound construction for reduced size and efficient space utilization. The innovative split bobbin nonconcentric winding design eliminates the need for costly electrostatic shielding, making them a cost-effective solution. Suitable for quick connects or soldering, these transformers provide reliable power transformation with optimized efficiency.
Product Specifications
Specifications Dimension A
2 11/16 in
Specifications Dimension B
1 1/16 in
Specifications Electrical Rating
56.0 V·A
Specifications Height H
2 1/4 in
Specifications Length L
3 11/16 in
Specifications Mounting Hole Size
3/16 in
Specifications Mounting Length
3 1/8 in
Specifications Output Rating
56.0 V CT at 1.0 A
Specifications Primary Frequency
50 Hz | 60 Hz

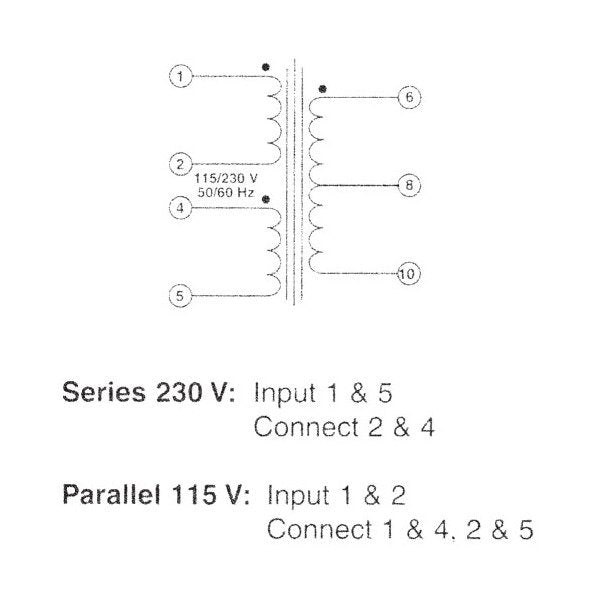

Specifications Primary Voltage
115 V | 230 V
Specifications Transformer Contact Type
Center Tap
Specifications Type
Dual Primary
Specifications Weight
1.70 lb
Specifications Width W
1 13/16 in
Technical Notes 0
Hi-pot tested at 2,500 VRMS.Class B insulation for maximum temperature of 130 ºC.Terminal size is 0.187" x 0.021".
