The Chassis Mount Quick Pack⢠Power Transformers are designed to deliver exceptional performance in a compact form factor, ideal for various applications. With a focus on reducing size and weight without compromising on quality, these transformers feature bobbin winding for space efficiency and split bobbin nonconcentric winding to eliminate the need for expensive electrostatic shielding. The transformers come in six different sizes to cater to diverse needs and are optimized for quick connections or soldering. Hi-pot tested and featuring Class B insulation with a temperature rating of up to 130 ºC, these transformers meet stringent industry standards for reliability and safety.
Product Specifications
Specifications Dimension A
1 15/16 in
Specifications Dimension B
13/16 in
Specifications Electrical Rating
12.0 V·A
Specifications Height H
1 5/8 in
Specifications Length L
2 13/16 in
Specifications Mounting Hole Size
3/16 in
Specifications Mounting Length
2 3/8 in
Specifications Output Rating
120.0 V CT at 0.1 A
Specifications Primary Frequency
50 Hz | 60 Hz

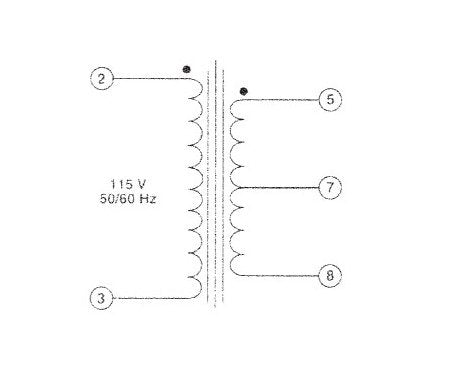

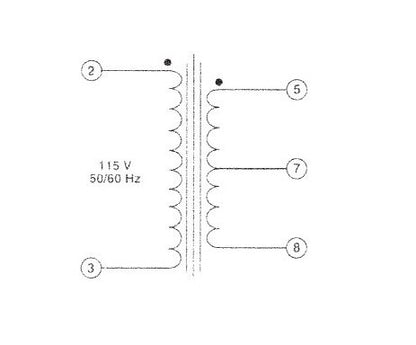

Specifications Primary Voltage
115 V
Specifications Transformer Contact Type
Center Tap
Specifications Type
Single Primary
Specifications Weight
0.70 lb
Specifications Width W
1 3/8 in
Technical Notes 0
Hi-pot tested at 2,500 VRMS.Class B insulation for maximum temperature of 130 ºC.Terminal size is 0.187" x 0.021".
