The Chassis Mount Quick Pack™ Power Transformers are an innovative solution for applications requiring a significant reduction in size and weight. With bobbin-wound construction and nonconcentric winding, these transformers offer space-saving benefits. Featuring a center tap transformer contact type, they provide reliable power output. The transformers are designed for quick connect or soldering termination, enhancing installation efficiency. Hi-pot tested for safety and Class B insulation ensures temperature durability. Suitable for a variety of applications, these transformers meet rigorous industry standards for performance and reliability.
Product Specifications
Specifications Dimension A
1 15/16 in
Specifications Dimension B
13/16 in
Specifications Electrical Rating
12.0 V·A
Specifications Height H
1 5/8 in
Specifications Length L
2 13/16 in
Specifications Mounting Hole Size
3/16 in
Specifications Mounting Length
2 3/8 in
Specifications Output Rating
16.0 V CT at 0.8 A
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V
Specifications Transformer Contact Type

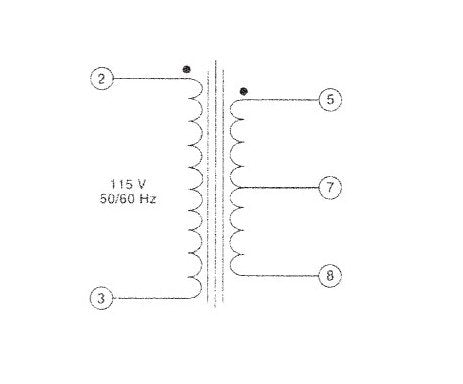

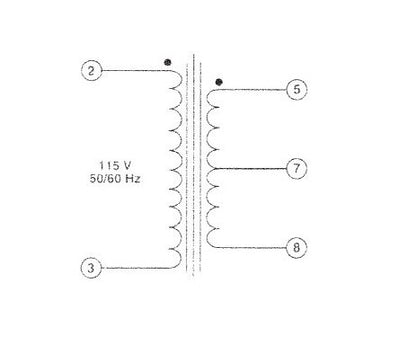

Center Tap
Specifications Type
Single Primary
Specifications Weight
0.70 lb
Specifications Width W
1 3/8 in
Technical Notes 0
Hi-pot tested at 2,500 VRMS.Class B insulation for maximum temperature of 130 ºC.Terminal size is 0.187" x 0.021".
