Compact Quick Pack Power Transformers
Compact Quick Pack Power Transformers
SKU:POW-aab693
Efficient, space-saving Chassis Mount Quick Pack™ Power Transformers for reliable power solutions.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
Compact Quick Pack Power Transformers
$34.99
Quantity: 1
Claim Your Seller Account
Compact Quick Pack Power Transformers
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience the efficiency and compact design of the Chassis Mount Quick Pack™ Power Transformers by Triad. These transformers offer a significant reduction in size and weight without compromising on performance. Bobbin wound for space-saving benefits, they feature split bobbin nonconcentric winding for cost-effective operation. With termination suitable for quick connects or soldering, these transformers are available in six sizes to cater to a wide range of applications. Hi-pot tested at 2,500 VRMS with Class B insulation, they ensure reliable operation up to 130°C. The primary voltage of 115 V and compliance with industry standards make these transformers a trusted choice for various power applications.
Product Specifications
Specifications Dimension A
2 5/16 in
Specifications Dimension B
1 1/16 in
Specifications Electrical Rating
30.0 V·A
Specifications Height H
1 15/16 in
Specifications Length L
3 1/4 in
Specifications Mounting Hole Size
3/16 in
Specifications Mounting Length
2 13/16 in
Specifications Output Rating
20.0 V CT at 1.5 A
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V
Specifications Transformer Contact Type

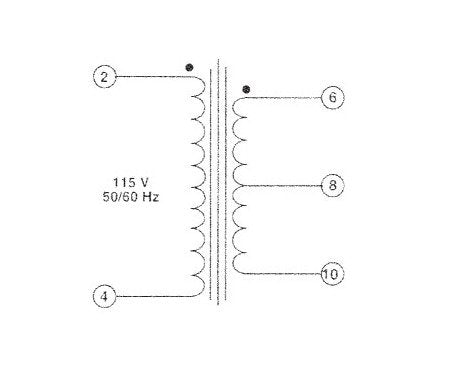

Center Tap
Specifications Type
Single Primary
Specifications Weight
1.10 lb
Specifications Width W
1 11/16 in
Technical Notes 0
Hi-pot tested at 2,500 VRMS.Class B insulation for maximum temperature of 130 ºC.Terminal size is 0.187" x 0.021".
