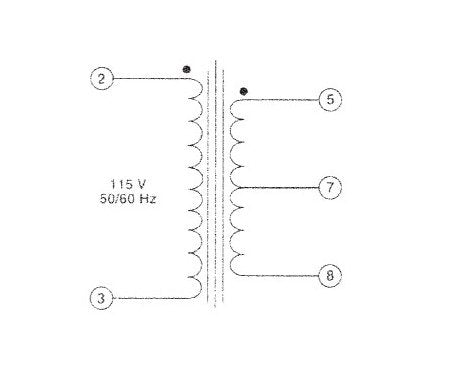

Experience the innovation of Triad Quick Pack Power Transformers, designed for efficiency and space-saving without compromising performance. With a reduced size and weight, these transformers offer 12.0 V·A electrical rating and 10.0 V CT at 1.2 A output rating. Featuring bobbin wound construction for space optimization and split bobbin nonconcentric winding for cost savings, these transformers are ideal for various applications. The Class B insulation with a maximum temperature of 130 ºC ensures reliable performance, while the Hi-pot testing at 2,500 VRMS guarantees safety. Suitable for quick connects or soldering, these transformers are a versatile choice for your power needs.
Product Specifications
Specifications Dimension A
1 15/16 in
Specifications Dimension B
13/16 in
Specifications Electrical Rating
12.0 V·A
Specifications Height H
1 5/8 in
Specifications Length L
2 13/16 in
Specifications Mounting Hole Size
3/16 in
Specifications Mounting Length
2 3/8 in
Specifications Output Rating
10.0 V CT at 1.2 A
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V
Specifications Transformer Contact Type
Center Tap
Specifications Type
Single Primary
Specifications Weight
0.70 lb
Specifications Width W
1 3/8 in
Technical Notes 0
Hi-pot tested at 2,500 VRMS.Class B insulation for maximum temperature of 130 ºC.Terminal size is 0.187" x 0.021".
