Enhance your power supply efficiency with the compact Chassis Mount Quick Pack⢠Power Transformers. Designed with a focus on size reduction and weight efficiency, these transformers deliver 56.0 VA electrical rating with an output rating of 16.0 V CT at 3.5 A. Featuring bobbin wound construction for space optimization and split bobbin nonconcentric winding to eliminate electrostatic shielding costs, these transformers are ideal for a wide range of applications. With Class B insulation and terminal size of 0.187" x 0.021", they are hi-pot tested at 2,500 VRMS. Experience reliable power performance in a compact package.
Product Specifications
Specifications Dimension A
2 11/16 in
Specifications Dimension B
1 1/16 in
Specifications Electrical Rating
56.0 V·A
Specifications Height H
2 1/4 in
Specifications Length L
3 11/16 in
Specifications Mounting Hole Size
3/16 in
Specifications Mounting Length
3 1/8 in

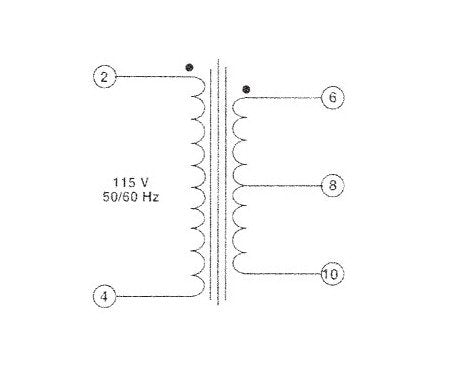

Specifications Output Rating
16.0 V CT at 3.5 A
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V
Specifications Transformer Contact Type
Center Tap
Specifications Type
Single Primary
Specifications Weight
1.70 lb
Specifications Width W
1 13/16 in
Technical Notes 0
Hi-pot tested at 2,500 VRMS.Class B insulation for maximum temperature of 130 ºC.Terminal size is 0.187" x 0.021".
