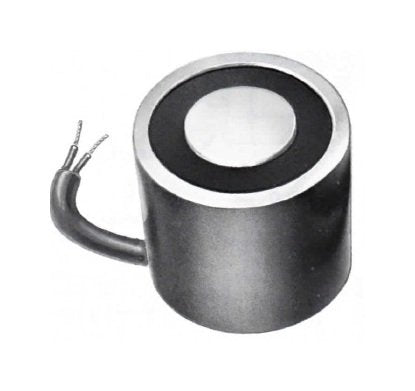

Compact Round Flat Faced Electromagnet
Compact Round Flat Faced Electromagnet
SKU:SMA-828b69
Securely hold workpieces with precision using our Compact Round Flat Faced Electromagnet. Ideal for industrial applications requiring strong magnetic pull.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Compact Round Flat Faced Electromagnet
$59.99
Quantity: 1
Claim Your Seller Account
Compact Round Flat Faced Electromagnet
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Compact Round Flat Faced Electromagnet is an essential component for industrial applications requiring secure magnetic holding. With a precise diameter of 1 inch and a powerful pull capacity of 20 lbs, this electromagnet is ideal for manual or automated use on flat, smooth surfaces. Operating at 4.5W with optional DC voltage ratings of 24V or 110V, it ensures reliable performance. Additionally, the included manufacturing note emphasizes customization options to suit specific requirements, making it a versatile choice for various applications.
Product Specifications
Additional Information 0
Rectifier-Controllers are required to convert AC line current to DC, provide switching, and incorporate a release function which allows clean release of the workpiece.
Manufacturing Notes 0
Consult factory for additional sizes, modifications and custom applications.
Specifications Diameter A
1 in
Specifications Height B
1 1/4 in
Specifications Location Of Leads E
3/16
Specifications Net Weight
2.6 oz
Specifications Optional Dc Voltage Ratings
24 V | 110 V
Specifications Power
4.5 W
Specifications Pull Capacity
20 lb
Specifications Standard Dc Voltage
12 V
Specifications Thread C
10 to 32 in
Specifications Thread Depth D
3/8 in
