Compact SBV210 Series 5.0mm Two-Piece Ball Valve
Compact SBV210 Series 5.0mm Two-Piece Ball Valve
SKU:SBV-879bc2
Reliable SBV210 Series 5.0mm Ball Valve with 1/4in FNPT End Connection for precise flow control in demanding conditions.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Compact SBV210 Series 5.0mm Two-Piece Ball Valve
$49.99
Quantity: 1
Claim Your Seller Account
Compact SBV210 Series 5.0mm Two-Piece Ball Valve
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

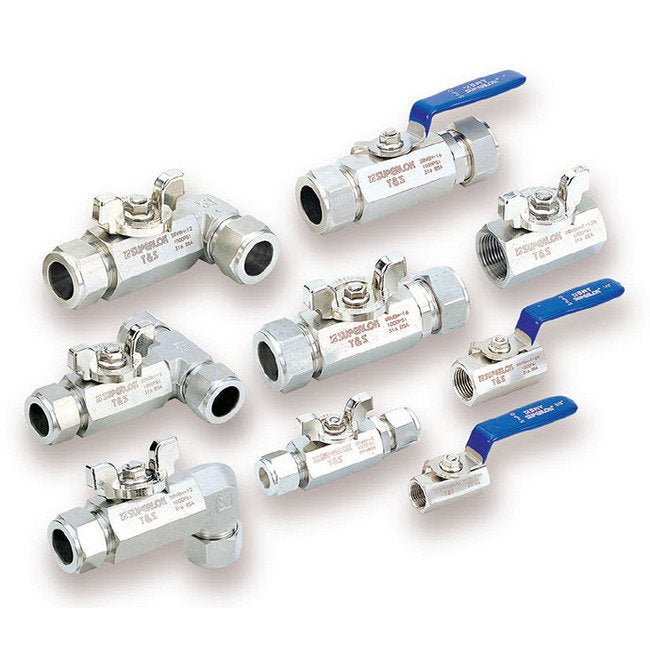

The SBV210 Series 5.0mm Two-Piece Ball Valve offers a compact design with reliable performance. Featuring a 1/4 in. FNPT end connection and a pressure rating of up to 1000 psig, this valve ensures tight and smooth operation with low torque. Constructed with high-quality 316 Stainless Steel or Brass, it guarantees durability. Tested at the factory, it meets stringent quality standards for precise flow control in various applications.
Product Specifications
Features Features
Compact designTight and smooth, low torque and easy operationButterfly and lever handle availableVariety of End ConnectionsEach and every valve is tested at the factory
Note Note

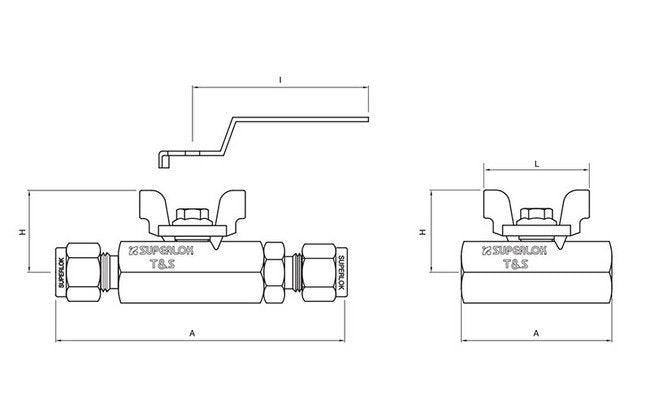

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Body Material
316 Stainless Steel | Brass
Technical Specs Dimension A
42.8 mm
Technical Specs Dimension H
23.0 mm
Technical Specs Dimension I
60 mm
Technical Specs Dimension L
30.0 mm
Technical Specs End Connections
1/4 in. Female National Pipe Thread (FNPT)
Technical Specs Flow Coefficients Cv
1.4
Technical Specs Handle
Bar Handle | Butterfly Handle (Standard)
Technical Specs Orifice Size
5.0 mm
Technical Specs Pressure Rating At 70 Degree Fahrenheit F 21 Deg
1000 psig | 69 bar
