Compact Series 75:1 Infrared Thermometer
Compact Series 75:1 Infrared Thermometer
SKU:COM-88fe45
High-precision Compact Series 75:1 Infrared Thermometer for industrial applications. Two-piece sensor design, rapid response time, and wide temperature range.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
Compact Series 75:1 Infrared Thermometer
$899.99
Quantity: 1
Claim Your Seller Account
Compact Series 75:1 Infrared Thermometer
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

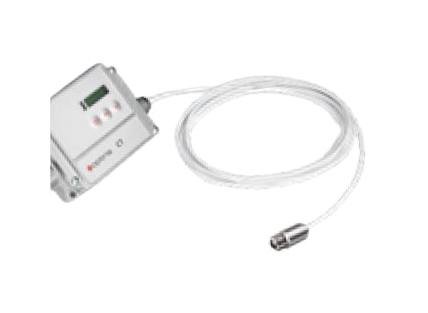

The Compact Series 75:1 Infrared Thermometer by Optris Infrared Sensing is a high-precision temperature measurement tool designed for industrial applications. With an optical resolution of 75:1 and a temperature range of 800 to 2200 °C, this compact device delivers accurate readings in high-temperature environments. Featuring a two-piece sensor system and rapid 1ms response time, it ensures reliable performance for metal temperature measurements. The separate electronic box houses the display and programming keys, enhancing user convenience. Ideal for cramped and hot settings, this infrared thermometer is a versatile and efficient solution for demanding industrial needs.
Product Specifications
Accessories Air Purges And Protective Housings
ACCSAP - Air purge collar (for heads with optical resolutionââ¥10:1)ACCTAPMH - Air purge collar for Massive housing (D06)/CSmicro HS/CThot/CT P3/CT P7High mass housing of:Compact, brass (D06ACCTMHB)Anodized aluminum (D06ACCTMHA)Stainless steel (D06ACCTMHS)Stainless steel version with CF optics (D06ACCTMHSCF)Stainless steel version for HT CF optics (D06ACCTMHSCFHT)ACCTAPLCFHT - Air purge collar, laminar, with integrated CF lens (for 1M/ 2M/ 3M)ACCTAPL - Air purge collar, laminarACCTAP/ACCTAP2 (2:1 Optics) - Air purge for CT heads (not for heads with 32 mm length)
Accessories Combinations
ACCTAPL - Air purge collar, laminar + ACCTMG - Mounting fork = Device adjustable in two axesACCTFB2 - Mounting bracket for sensing head + Sighting tool + D08ACCTLST/ACCTOEMLST - OEM Laser-Sighting tool = Sensing head with Laser Sighting toolACCTFB - Mounting bracket for M12x1 sensing head + ACCTMB - Mounting bolt = ACCTAB - Device adjustable in two axesD06ACCTAPMH - Massive housing, stainless steel + ACCTAPMH - Air purge, stainless steel = Massive housing with air purge
Accessories Mechanical Accessories
ACCTFB/ACCTFBMH/ACCTFB2 - Mounting bracket, adjustable in one axis (M12x1 sensing head, massive housing, mounting of CT sensing head + Laser-Sighting tool)ACCTTAS - Tilt assembly for heads with opticalâresolutionââ¥10:1ACCTKF40B270/ACCTKF40GE - KF40 flange for CT1M, 2M, 3M with B270 window (up to 10-7 mbar)/KF40 flange for CTLT with Ge window (up to 10-7 mbar)ACCTRAIL - Rail mount adapter for CT electronicsACCTMB - Mounting bolt with thread M12x1ACCTMG - Mounting fork, adjustable in 2 axes, with thread M12x1
Accessories Optical Accessories
ACCTCF/ACCTPW - CF-lens or protective window (for LT) for M12x1 sensing headACCTCFHT / ACCTPWHT for 1M, 2M, 3MACCTCFE/ACCTPWE - CF-lens or protective window (for LT) with external thread for air purge or massive housingACCTCFHTE/ACCTPWHTE for 1M, 2M, 3MD08ACCTLST/ACCTOEMLST - Laser-Sighting tool (for CT )/OEM Laser-Sighting tool, 635 nm, rotation symmetrical, for connection to CT electronics, power supply via CT electronic box or batteryACCTRAM - Right angle mirror for measurements 90º to the sensor axisâforâsensingâheadsâwithâopticalâresolutionââ¥10:1ACCTPA + ACCTST20 20 (20 mm length)/ACCTST40 (40 mm length)/ACCTST88 (88 mm length) Pipe adapter with M12x1 internal thread + Sighting tube with M12x1 external thread
Specifications Accuracy
±(0.3% Tmeas +2 ºC) | ±(0.3% Tmeas +4 ºF)
Specifications Classificationspecial Features
Two-Piece Sensor for High Temperature Measuring of Metal, Separate Electronic Box Including Display and Programming Keys
Specifications Detector
Si
Specifications Direct Current Dc Power Supply Voltage
8 to 36 V
Specifications Functional Number
3
Specifications Maximum Electronics Ambient Temperature Tamb
85 ºC | 185 ºF
Specifications Maximum Head Ambient Temperature Tamb
100 ºC | 212 ºF
Specifications Maximum Head Cable Shortening
3 m | 9.8 ft
Specifications Minimum Head Ambient Temperature Tamb
-20 ºC | -4 ºF
Specifications Optical Resolution
75:1
Specifications Response Time At 90 Percent
1 ms
Specifications Smallest Spot Cf Opticsadditional Cf Lens At 110
1.5 mm
Specifications Smallest Spot Cf Opticsadditional Cf Lens At 43 I
0.06 in
Specifications Smallest Spot Sf Optics
7 mm | 0.3 in
Specifications Spectral Range
1.0 µm
Specifications Standard Cable Length Options
15 m | 3 m | 8 m | 26.2 ft | 49.2 ft | 9.8 ft
Specifications Temperature Ranges
800 to 2200 ºC | 1472 to 3992 ºF
Specifications Temperature Resolution
0.25 K
Specifications Thread Sensing Head
M12 x 1
