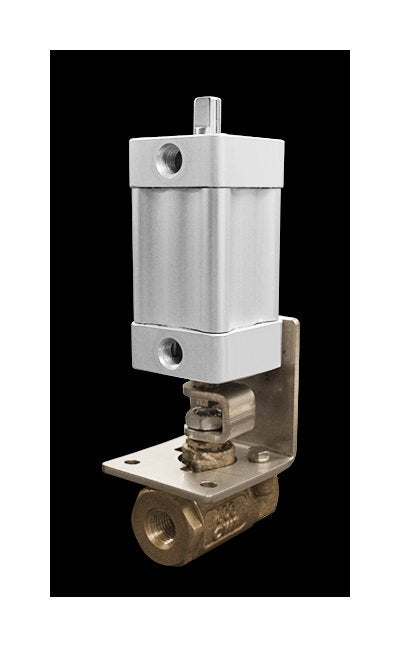

Compact Spring Return Ball Valve Actuator - 350 in·lb

Compact Spring Return Ball Valve Actuator - 350 in·lb

SKU:VAL-d397b3

Enhance valve systems with the reliable Compact Spring Return Ball Valve Actuator (350 in·lb) for precise On/Off isolating operation.

Regular price $299.99
Regular price Sale price $299.99
Sale

Initiate Order

Compact Spring Return Ball Valve Actuator - 350 in·lb

Compact Spring Return Ball Valve Actuator - 350 in·lb

$299.99

Quantity: 1

Claim Your Seller Account

Compact Spring Return Ball Valve Actuator - 350 in·lb

Compact Spring Return Ball Valve Actuator - 350 in·lb

$299.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
Upgrade your valve system with the Compact Spring Return Ball Valve Actuator, designed for precision and reliability. This pneumatic vane actuator boasts an actuator torque of 350 in·lb and a quarter-turn range for efficient operation. With single acting air-to-spring capabilities, and an easy-to-adjust worm drive for spring pretension, this operator ensures secure On/Off isolating function in temperatures ranging from -20 to 180 °F.

Product Specifications

Features Features
Non-hazardousHeavy Duty Double Acting Ball Valve SystemsSpring Return Valve operators Single acting with spring close or openValve Operator Systems
Specifications Acting Type
Single Acting (Air to Spring)
Specifications Actuation Method
Pneumatic
Specifications Actuator Torque
350 in·lb
Specifications Actuator Type
Vane Actuator
Specifications Full Range Of Rotary Motion
Quarter Turn (90º)
Specifications Operating Temperature High
180 ºF
Specifications Operating Temperature Low
-20 ºF
Specifications Operation
On/Off (Isolating)
Specifications Torque
140 to 800 in·lb
Specifications Valve Motion
Rotary Motion Valve
Specifications Valve Size
1/4 to 3 in
