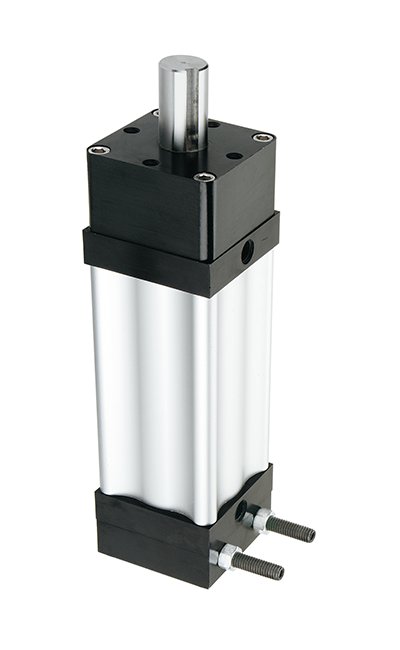

Compact Turn-Act 270 Degree Rotary Vane Actuator
Compact Turn-Act 270 Degree Rotary Vane Actuator
SKU:ROT-810d9f
Precise 270º rotary vane actuator with 32 in-lb torque for industrial applications
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
Compact Turn-Act 270 Degree Rotary Vane Actuator
$349.99
Quantity: 1
Claim Your Seller Account
Compact Turn-Act 270 Degree Rotary Vane Actuator
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Compact Turn-Act 270 Degree Rotary Vane Actuator is a high-quality pneumatic rotary actuator designed for precision motion control. With a maximum torque of 32 in-lb and a rotation angle of 270º, this actuator offers accurate and repeatable positioning for various applications. It features a unidirectional clutch for smooth operation and a durable aluminum body for reliable performance. Ideal for turntable workstations, conveyor systems, material feed mechanisms, and more, the Compact Turn-Act is customizable to meet specific application needs, including optional position feedback for enhanced functionality.
Product Specifications
Applications Include Applications Include
Turntable Work StationsDrive Conveyor Rollers or BeltsDrive Material Feed RollersRatchet Type DriveSheet Feed Material From a StackPeristalsis Pump DriveLow Speed High Torque MotorProduct Mixing
Application Considerations Application Considerations
Overrun: The output shaft can be manually rotated only in its drive direction. Large loads may coast after the actuator has stopped. The output shaft cannot be reverse rotated- Forcing it backwards could damage the Turn-DeAccurate & Repeatable Positioning: Due to the overrun nature of the clutch eSpecial Options: Turn-Act will provide customized units to fit your specific application needs. Modifications include special shafting, special mounts, dutch housings with shot-pin cylinders, disc brakes and thrust protection. Consult your Compact distributor for additional information.
Features Features
Position Feedback (Optional)
Specifications Actuator Style
Rotary Vane (Single)
Specifications Body Material
Aluminum
Specifications Length
4.84 in
Specifications Maximum Torque
32 in·lb
Specifications Number Of Shafts
Single Shaft
Specifications Operating Pressure Range High
200 psi
Specifications Operating Pressure Range Low
35 psi
Specifications Operating Temperature High
180 ºF
Specifications Operating Temperature Low
-20 ºF
Specifications Physical Dimensions
1.62 in²
Specifications Rotational Output
Shaft
Specifications Rotation Angle
270 º
Specifications Shaft Length Or Table Height
1 in
Specifications Shaft Or Table Diameter
0.625 in
Specifications Standard
english_1_1_4
Specifications Technology Type
Pneumatic
