Compact Turn-Dex 90° Rotary Vane Actuator
Compact Turn-Dex 90° Rotary Vane Actuator
SKU:ROT-5d33cc
Precision rotary vane actuator with 90° rotation angle and 25 in·lb torque for accurate positioning.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
Compact Turn-Dex 90° Rotary Vane Actuator
$289.99
Quantity: 1
Claim Your Seller Account
Compact Turn-Dex 90° Rotary Vane Actuator
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

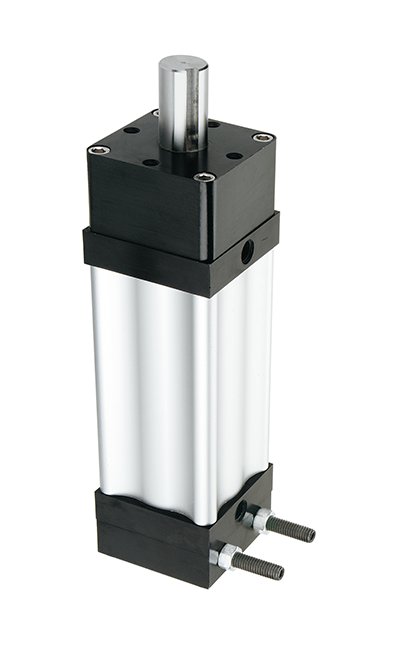

The Compact Turn-Dex 90° Rotary Vane Actuator features a unidirectional clutch for accurate and repeatable positioning. With a maximum torque of 25 in·lb and a rotation angle of 90°, this pneumatic actuator is designed for applications such as turntable workstations, drive conveyor rollers, and more. Customizable options are available to fit specific needs, including position feedback for enhanced control.
Product Specifications
Applications Include Applications Include
Turntable Work StationsDrive Conveyor Rollers or BeltsDrive Material Feed RollersRatchet Type DriveSheet Feed Material From a StackPeristalsis Pump DriveLow Speed High Torque MotorProduct Mixing
Application Considerations Application Considerations
Overrun: The output shaft can be manually rotated only in its drive direction. Large loads may coast after the actuator has stopped. The output shaft cannot be reverse rotated- Forcing it backwards could damage the Turn-DeAccurate & Repeatable Positioning: Due to the overrun nature of the clutch eSpecial Options: Turn-Act will provide customized units to fit your specific application needs. Modifications include special shafting, special mounts, dutch housings with shot-pin cylinders, disc brakes and thrust protection. Consult your Compact distributor for additional information.
Features Features
Position Feedback (Optional)
Specifications Actuator Style
Rotary Vane (Single)
Specifications Body Material
Aluminum
Specifications Length
3.84 in
Specifications Maximum Torque
25 in·lb
Specifications Number Of Shafts
Single Shaft
Specifications Operating Pressure Range High
200 psi
Specifications Operating Pressure Range Low
35 psi
Specifications Operating Temperature High
180 ºF
Specifications Operating Temperature Low
-20 ºF
Specifications Physical Dimensions
1.62 in²
Specifications Rotational Output
Shaft
Specifications Rotation Angle
90 º
Specifications Shaft Length Or Table Height
1 in
Specifications Shaft Or Table Diameter
0.625 in
Specifications Standard
english_1_1_4
Specifications Technology Type
Pneumatic
