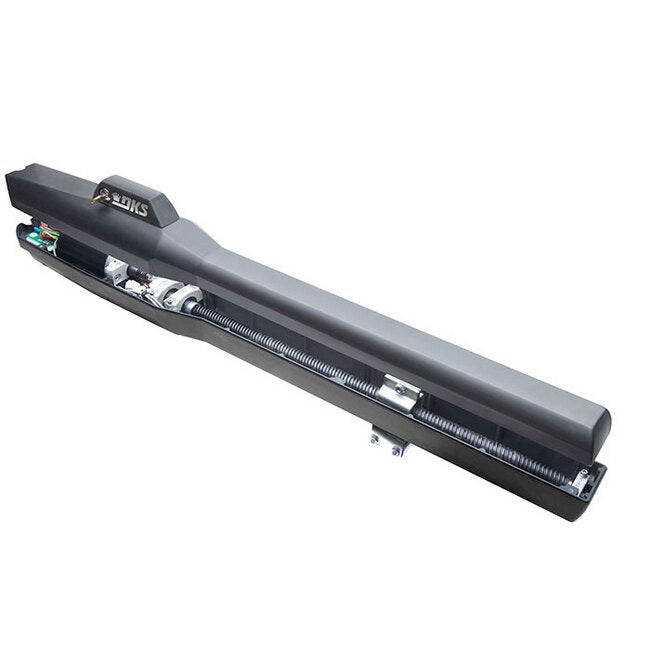

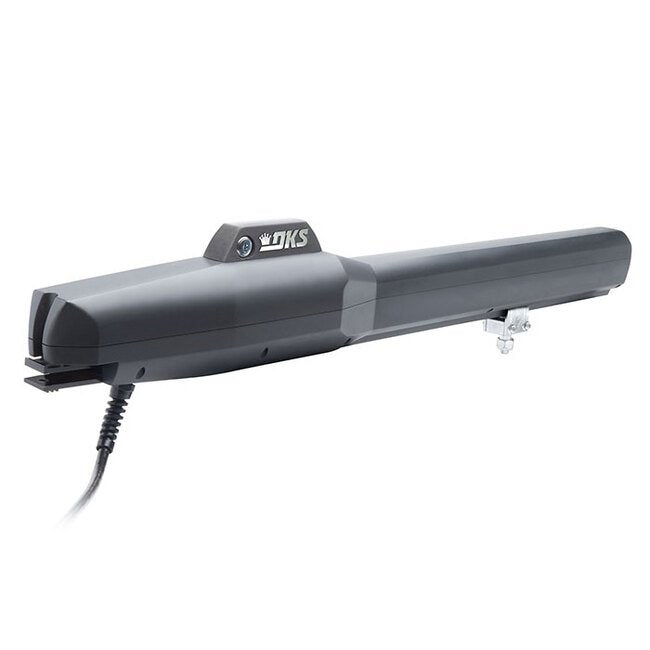

Enhance your security with the DKS 6006 Swing Gate Actuator. This compact, low voltage actuator features a screw-driven action powered by a 24V DC motor for reliable operation without hydraulic concerns. With built-in magnetic limit switches, precise control is ensured while the compact design simplifies installation. The actuator is compliant with Underwriters' Laboratories (UL) 325 & 991, ETL Listed, making it a reliable and durable choice for residential applications.
Product Specifications
Additional Information Additional Information
With options for single or bi-parting gates, our Gate Operators are made to withstand the elements and deliver dependable access control, all while maintaining the aesthetic of your gate.
Applications Applications
Residential
Dimensions Depth
4 in | 10.1 cm
Dimensions Height
6.25 in | 15.8 cm
Dimensions Length
40 in | 101.6 cm
Key Features Key Features

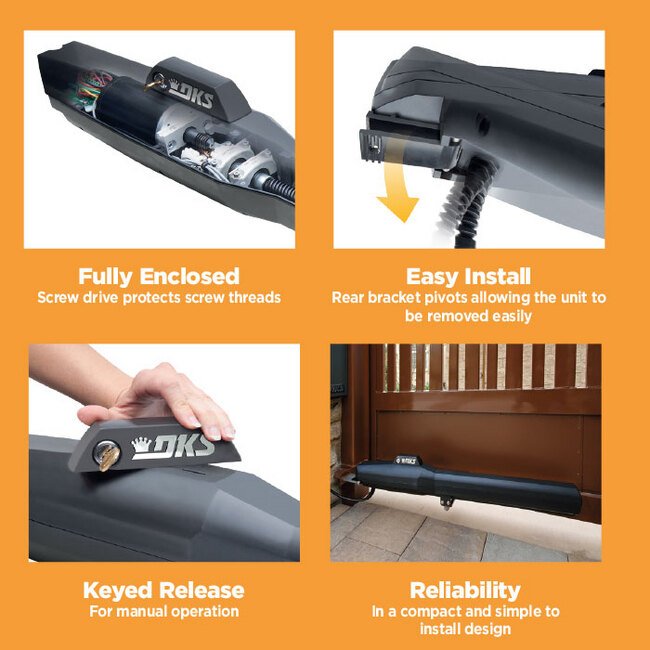

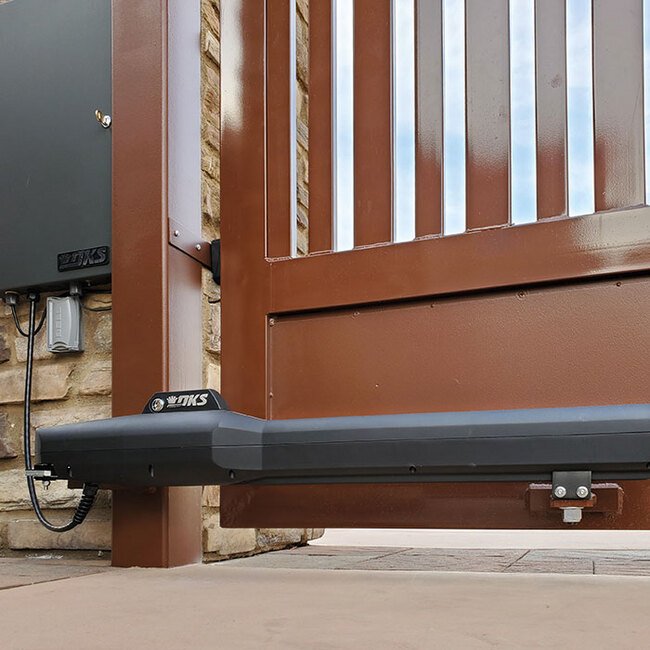

Mounts directly on gate and gate post - simplifying installation and eliminating the need for concrete padsBattery Backup provides uninterrupted operation if primary (AC) power is lostIncludes Photo-cell for entrapment prevention115 VAC or 24 VDC Solar Powered Control Box optionsInternal adjustable no contact magnetic limit switches.Overlap feature for dual swing gate operation.Magnetic lock output.Screw drive.Fully enclosed gear-reduction to maintain lubrication.Separate control panel.Keyed release for manual operation.
Note Note
Solar Powered Control Box option
Options Options
Bi-parting gate connection cable.Magnetic gate lock.Solar power.
Specifications 90 Degree Opening Time
18 to 20 s
Specifications Alternating Current Ac Voltage
115 V
Specifications Class Of Operation
Class I | Class II
Specifications Direct Current Dc Voltage
24 V
Specifications Gate Tracker Data Output
No
Specifications Limited Factory Warranty
2 y
Specifications Limit Switches
Keyed
Specifications Manual Release
Keyed
Specifications Maximum Gate Length
18 ft
Specifications Maximum Gate Length At 1600 Pound Lb Weight
8 ft
Specifications Maximum Gate Length At 600 Pound Lb Weight
18 ft
Specifications Maximum Gate Length At 800 Pound Lb Weight
16 ft
Specifications Motor Type
Direct Current (DC) Motor
Specifications Mounting Type
Left or Right Hand
Specifications Operating Temperature
0 to 46 ºC | 32 to 115 ºF
Specifications Overlap Feature For Bi Parting Operation
Yes
Specifications Slow Start Slow Stop Operation Type
Mechanic
Specifications Solar Compatible
Yes
Specifications Standards
Compliant with Underwriters' Laboratories (UL) 325 and 991 | Edison Testing Laboratories (ETL) Listed
Specifications Usage
Residential
Technical Specifications Technical Specifications

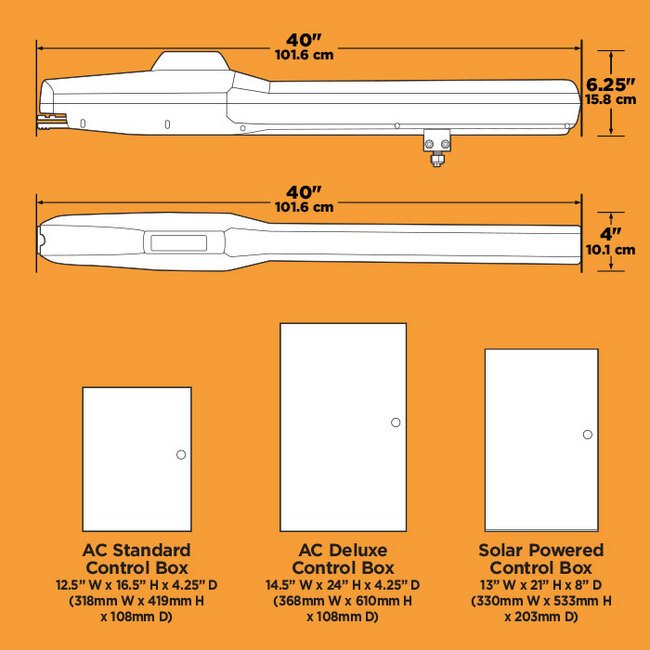

Gate Maximums: (Assumes gate swings level and is in good condition with properly adjusted hardware. Other external factors may affect the performance of the gate operator.)8 Ft. (2.43 m) at 1600 lbs (725.7 kg)16 Ft. (4.87 m) at 800 lbs (362.8 kg)18 Ft. (5.48 m) at 600 lbs (272.1 kg)Speed: 90 in approximately 18-20 seconds110º maximum openingActuator operates at 24 Volts DC power.Class I, II applications.Compliant with UL 325 and 991. ETL Listed. (Note: To be compliant with UL 325 and industry safety guidelines, additional Type B1 and/or Type B2 entrapment protection devices need to be installed with this gate operator. Your professional DKS system installer can provide you with more details on these devices and on current industry safety standards.)Dimensions (actuator only): 4" (10.1 cm) D x 6.25" (15.8 cm) H x 40" (101.6 cm) LDimensions (120 Volt deluxe control box): 14.5 "W x 24 "H x 4.25 "DDimensions (120 Volt standard control box): 12.5 "W x 16.5 "H x 4.25 "DDimensions (24 Volt Solar control box): 13 "W x 21 "H x 8 "D
