Compact Wall Plug-In AC Power Supplies
Compact Wall Plug-In AC Power Supplies
SKU:WAL-308b5c
Efficient and compact Wall Plug-In AC Power Supplies for Industrial & Commercial use, eliminating noise and enhancing product safety
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Compact Wall Plug-In AC Power Supplies
$59.99
Quantity: 1
Claim Your Seller Account
Compact Wall Plug-In AC Power Supplies
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

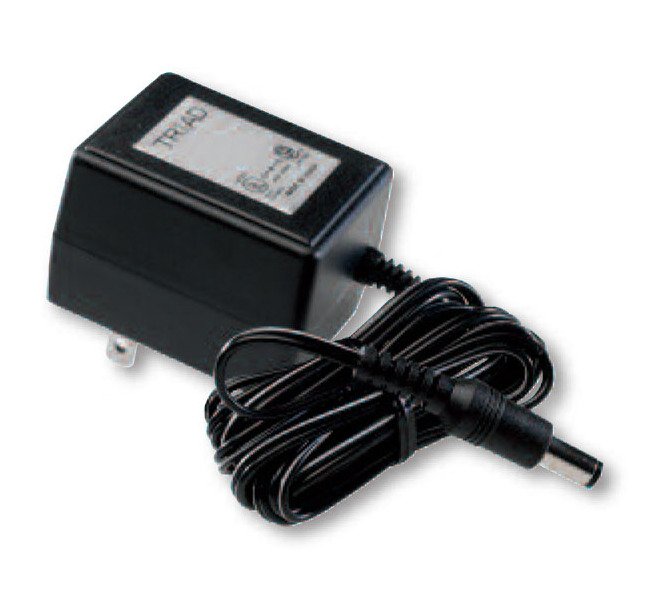

Our compact Wall Plug-In AC Power Supplies are specially designed for Industrial and Commercial use, offering a sleek solution to power needs. These prepackaged linear power supplies eliminate the requirement for internal cooling devices, reducing noise and enhancing product efficiency. Enclosed for tamper resistance, these power sources are available in popular voltages, ensuring safety and compliance with industry standards. With a compact design that keeps heat away from sensitive circuits, these power supplies provide a stable output, aiding in gaining necessary approvals.
Product Specifications
Note Note
Specifications subject to change without notice

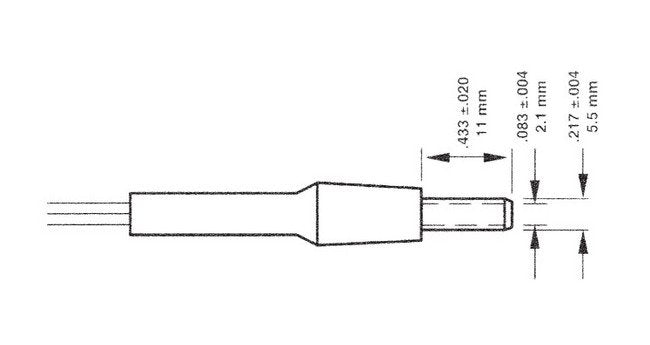

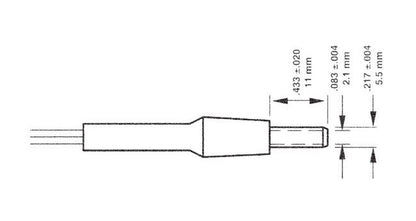

Output Plug Dimensions Inside Diameter Id
2.1 mm
Output Plug Dimensions Length L
11 mm
Output Plug Dimensions Outside Diameter Od
5.5 mm
Specifications Depth D
55 mm
Specifications Height H
85 mm
Specifications Input Power
52.2 W
Specifications Input Voltage Ac
120 V
Specifications Output Current Ac
1.8 A
Specifications Output Voltage Ac
24.0 V
Specifications Type
AC/DC Unregulated
Specifications Width W
68 mm
Technical Notes Technical Notes
Inside (tip) - positive (+), outside - negative (-)Plug use on DC and AC models
