Compact Wall Plug-In Switch Mode Power Supply
Compact Wall Plug-In Switch Mode Power Supply
SKU:WAL-87cc36
Enhance designs with compact plug-in power supply. Regulated output, energy-efficient.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Compact Wall Plug-In Switch Mode Power Supply
$29.99
Quantity: 1
Claim Your Seller Account
Compact Wall Plug-In Switch Mode Power Supply
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

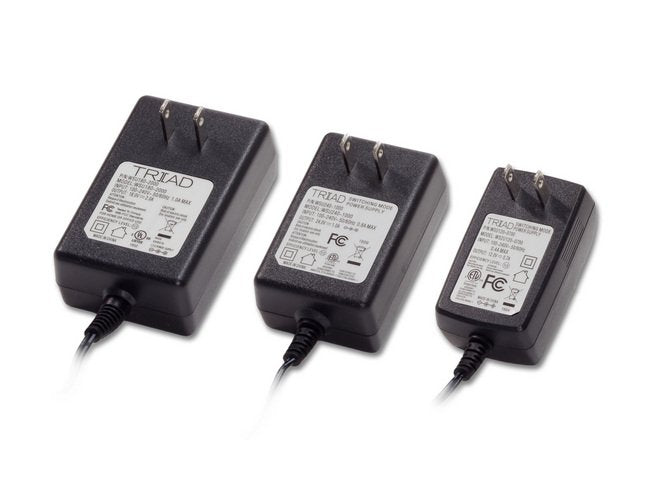

Enhance your product designs efficiently with our Triad prepackaged wall plug-in switch mode power supplies. These compact power sources reduce noise levels, size, and weight, offering regulated output voltage to safeguard sensitive circuits. With features like reversed polarity compatibility, generous cord lengths, and Level IV/V efficiency, our plug-ins meet EIAS 2007 energy efficiency requirements.
Product Specifications
Case Dimensions Depth D
1.22 in | 31.00 mm
Case Dimensions Height H
3.02 in | 76.80 mm
Case Dimensions Width W
1.89 in | 48.00 mm

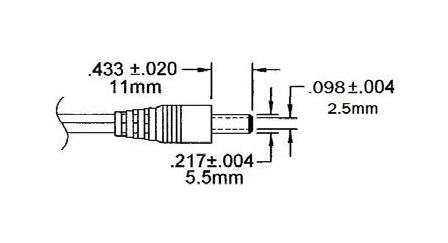

Output Plug Dimensions Inside Diameter Id
0.098±0.004 in | 2.5 mm
Output Plug Dimensions Length L
0.433±0.020 in | 11 mm
Output Plug Dimensions Outside Diameter Od
0.217±0.004 in | 5.5 mm
Specifications 2007 Eisa Efficiency
VI
Specifications Input Operating Frequency
50 Hz | 60 Hz
Specifications Input Voltage Ac
100 to 240 V
Specifications Maximum Power
18.00 W
Specifications Output Current
2.4 A
Specifications Output Current Dc
2.4 A
Specifications Output Voltage Dc
7.5 V
Specifications Polarity Center
Negative
Specifications Type
Switchmode
