Computer Blue LFMC – Type CW HD
Computer Blue LFMC – Type CW HD
SKU:LIQ-282a0c
Secure your wiring with the Computer Blue LFMC – Type CW HD, a UL Listed and CSA Certified flexible metal conduit with IP 67 rating for reliable protection.
Regular price
$44.99
Regular price
Sale price
$44.99
Unit price
per
Initiate Order
Computer Blue LFMC – Type CW HD
$44.99
Quantity: 1
Claim Your Seller Account
Computer Blue LFMC – Type CW HD
$44.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

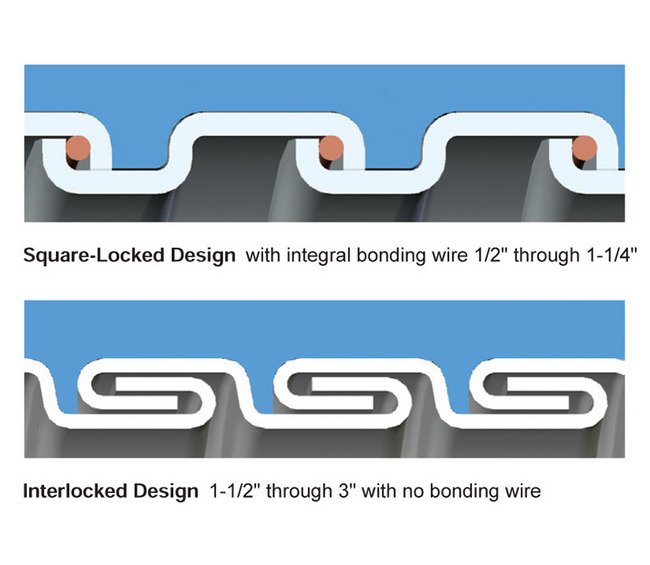

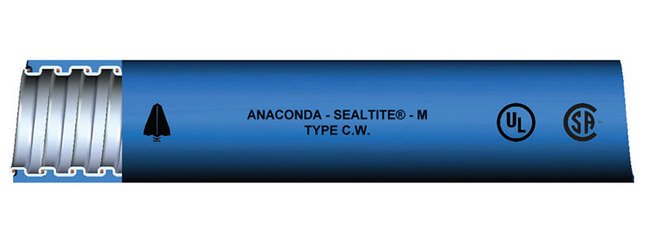

The Computer Blue LFMC – Type CW HD is a robust liquid-tight flexible metal conduit designed to provide a secure and reliable raceway for wiring applications. Constructed with a continuously interlocked hot-dipped zinc galvanized steel core and a flame-retardant PVC jacket, this conduit is UL Listed and CSA Certified, ensuring optimal safety and performance. With an IP 67 rating when used with approved connectors, it offers protection against ingress, making it suitable for both exposed and concealed locations. This conduit meets NEC standards and is approved for use in hazardous locations and direct burial, offering versatility and compliance for a wide range of applications.
Product Specifications
Application 0
Computer Wiring Meets Requirements of NECTemperature Range: -40°F to +176°F (-40°C to +80°C)
Installation 0
Conduit used with standard liquid-tight connector for easy installation. IP 67 Rated when installed with approved connectors. Approved for both exposed and concealed locations. Rated for temperature ranges -40ºF to + 176ºF (-40ºC to +80ºC). Approved as an equipment grounding conductor in sizes 1/2" through 1-1/4, if the total grounding path is 6 ft. or less and the circuit conductors are protected by over 20 amps for 1/2" and 60 amps or less for 3/4" through 1-1/4". Suitable for use in hazardous locations per NEC Articles 501 Class I Div. 2, Article 502 Class II Div. 1 & 2, Article 503 Class III Div. 1 & 2. Manufactured in a full range of trade sizes from 1/2" through 3". Approved for direct burial and in concrete trade sizes 1/2" through 3". Complies with UL Standard 360 File No. E18917; CSA C22.2 File No. 158897; and NEC Article 350.
Nec Articles 0
Article 250.118 (6) Equipment Grounding Article 300.22 (D) Information Technology Equipment Article 350 Liquid-Tight Flexible Metal Conduit (LFMC) Article 501.10 (B) (2) Class I Div. 2 Article 502.10 (A) (2) and (B) (2) Class II Div. 1 & 2 Article 503.10 (A) (3) and (B) Class III Div. 1 & 2 Article 620.21 Elevator Wiring Methods Article 645.5 (E) (2) Under Raised Floors
Specifications Approx Inside Bend Radius
15 in | 381 mm
Specifications Approx Weight Per 100 Ft
264 lbs | 119.7 kg
Specifications Color
BLUE
Specifications Core Material
Galvanized Steel
Specifications Cross Reference
281024 | 55-16-99-03 | 6409-22-00 | CBLA-18 | CBLT-3 | ULBLUE
Specifications Electrical Trade Size
3 in | 78 mm
Specifications Industry Certifications
UL Listed & CSA Certified
Specifications Ingress Protection Ip Rating
Ingress Protection (IP) 66/67
Specifications Inside Diameter
3.070 to 3.100 in | 77.978 to 78.740 mm
Specifications Jacket Benefits
Liquid Tight | Oil Resistant
Specifications Jacket Material
Polyvinyl Chloride (PVC)
Specifications Length
25 ft | 7.62 m
Specifications Note
Other colors available upon request.3/8" & 4" trade sizes available on special order.
Specifications Outside Diameter
3.460 to 3.500 in | 87.884 to 88.900 mm
Specifications Packaging
Standard Carton
Specifications Type
CW
