Computer Blue Liquid-Tight Flexible Metal Conduit 1-1/4"

Name: Computer Blue Liquid-Tight Flexible Metal Conduit 1-1/4"
Brand: Anamet Electrical, Inc.
SKU: LIQ-ef000d
Price: 199.99 USD
Availability: OutOfStock

SKU:LIQ-ef000d

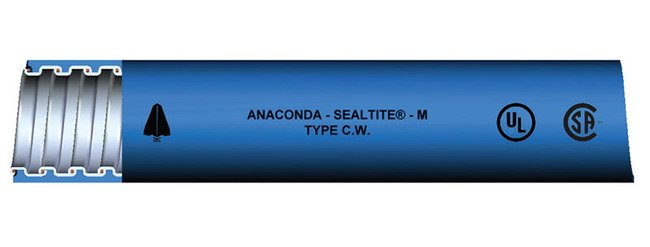

Type CW HD Computer Blue Liquid-Tight Flexible Metal Conduit (LFMC) - Flexible, durable, and UL Listed for safety.

$199.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

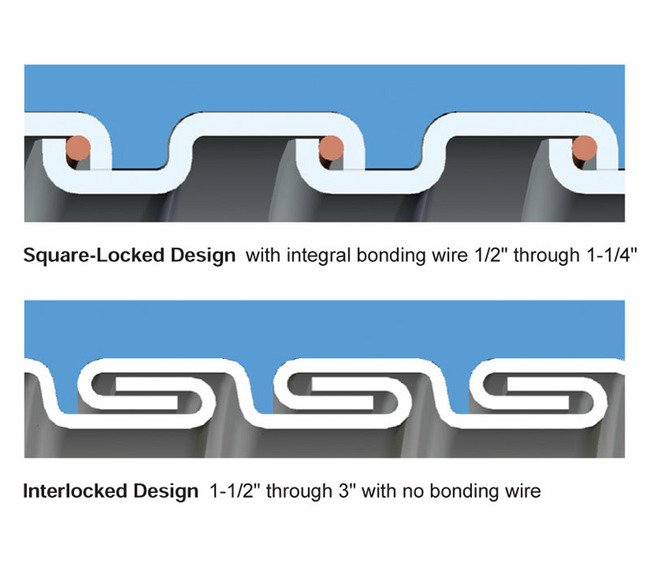

The Type CW HD Computer Blue Liquid-Tight Flexible Metal Conduit (LFMC) is designed to provide a flexible and liquid-tight raceway for wiring in a range of applications. With a thermoplastic PVC jacket and integral bonding wire, this conduit ensures reliable performance and safety. Its construction features continuously interlocked hot-dipped zinc galvanized steel core, making it durable and corrosion-resistant. This UL Listed and CSA Certified conduit is suitable for hazardous locations, direct burial, and concrete installations, meeting various industry standards and NEC requirements.

Product Specifications

Application 0

Computer Wiring Meets Requirements of NECTemperature Range: -40°F to +176°F (-40°C to +80°C)

Installation 0

Conduit used with standard liquid-tight connector for easy installation. IP 67 Rated when installed with approved connectors. Approved for both exposed and concealed locations. Rated for temperature ranges -40ºF to + 176ºF (-40ºC to +80ºC). Approved as an equipment grounding conductor in sizes 1/2" through 1-1/4, if the total grounding path is 6 ft. or less and the circuit conductors are protected by over 20 amps for 1/2" and 60 amps or less for 3/4" through 1-1/4". Suitable for use in hazardous locations per NEC Articles 501 Class I Div. 2, Article 502 Class II Div. 1 & 2, Article 503 Class III Div. 1 & 2. Manufactured in a full range of trade sizes from 1/2" through 3". Approved for direct burial and in concrete trade sizes 1/2" through 3". Complies with UL Standard 360 File No. E18917; CSA C22.2 File No. 158897; and NEC Article 350.

Nec Articles 0

Article 250.118 (6) Equipment Grounding Article 300.22 (D) Information Technology Equipment Article 350 Liquid-Tight Flexible Metal Conduit (LFMC) Article 501.10 (B) (2) Class I Div. 2 Article 502.10 (A) (2) and (B) (2) Class II Div. 1 & 2 Article 503.10 (A) (3) and (B) Class III Div. 1 & 2 Article 620.21 Elevator Wiring Methods Article 645.5 (E) (2) Under Raised Floors

Specifications Approx Inside Bend Radius

7.0 in | 177.8 mm

Specifications Approx Weight Per 100 Ft

94 lbs | 42.6 kg

Specifications Color

BLUE

Specifications Core Material

Galvanized Steel

Specifications Cross Reference

241044 | 55-28-09-01 | 6405-40-00 | CB | CBLA-14 | CBLT-1-1/4 | ULBLUE

Specifications Electrical Trade Size

1-1/4 in | 35 mm

Specifications Industry Certifications

UL Listed & CSA Certified

Specifications Ingress Protection Ip Rating

Ingress Protection (IP) 66/67

Specifications Inside Diameter

1.380 to 1.410 in | 35.052 to 35.814 mm

Specifications Jacket Benefits

Liquid Tight | Oil Resistant

Specifications Jacket Material

Polyvinyl Chloride (PVC)

Specifications Length

250 ft | 76.2 m

Specifications Note

Other colors available upon request.3/8" & 4" trade sizes available on special order.

Specifications Outside Diameter

1.630 to 1.660 in | 41.402 to 42.164 mm

Specifications Packaging

Small Reels

Specifications Type

Computer Blue Liquid-Tight Flexible Metal Conduit 1-1/4"
