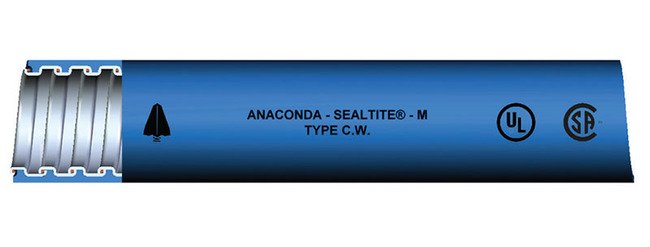

Computer Blue Liquid-Tight Flexible Metal Conduit 2-1/2in, UL Listed
Computer Blue Liquid-Tight Flexible Metal Conduit 2-1/2in, UL Listed
SKU:LIQ-c621a1
Upgrade your computer wiring with the flexible and flame-retardant Computer Blue Liquid-Tight Metal Conduit.
Regular price
$279.99
Regular price
Sale price
$279.99
Unit price
per
Initiate Order
Computer Blue Liquid-Tight Flexible Metal Conduit 2-1/2in, UL Listed
$279.99
Quantity: 1
Claim Your Seller Account
Computer Blue Liquid-Tight Flexible Metal Conduit 2-1/2in, UL Listed
$279.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

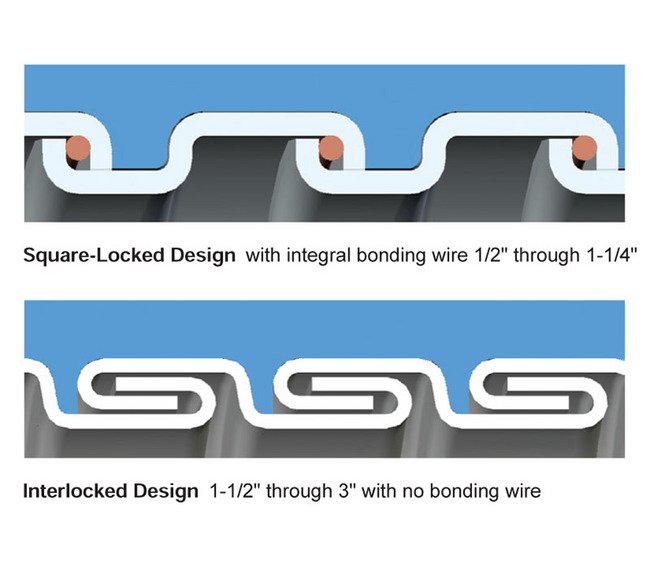

Upgrade your computer wiring with the Type CW HD Computer Blue Liquid-Tight Flexible Metal Conduit. Constructed from hot-dipped zinc galvanized steel core, this conduit offers a flexible and liquid-tight raceway solution. It features a flame-retardant PVC jacket, industry certifications from UL and CSA, and an IP 67 rating when used with approved end connectors. Suitable for both exposed and concealed installations, this conduit is designed for temperatures ranging from -40°F to +176°F. Meeting NEC Article standards and suitable for hazardous locations, this conduit is a reliable choice for your institutional wiring needs.
Product Specifications
Application 0
Computer Wiring Meets Requirements of NECTemperature Range: -40°F to +176°F (-40°C to +80°C)
Installation 0
Conduit used with standard liquid-tight connector for easy installation. IP 67 Rated when installed with approved connectors. Approved for both exposed and concealed locations. Rated for temperature ranges -40ºF to + 176ºF (-40ºC to +80ºC). Approved as an equipment grounding conductor in sizes 1/2" through 1-1/4, if the total grounding path is 6 ft. or less and the circuit conductors are protected by over 20 amps for 1/2" and 60 amps or less for 3/4" through 1-1/4". Suitable for use in hazardous locations per NEC Articles 501 Class I Div. 2, Article 502 Class II Div. 1 & 2, Article 503 Class III Div. 1 & 2. Manufactured in a full range of trade sizes from 1/2" through 3". Approved for direct burial and in concrete trade sizes 1/2" through 3". Complies with UL Standard 360 File No. E18917; CSA C22.2 File No. 158897; and NEC Article 350.
Nec Articles 0
Article 250.118 (6) Equipment Grounding Article 300.22 (D) Information Technology Equipment Article 350 Liquid-Tight Flexible Metal Conduit (LFMC) Article 501.10 (B) (2) Class I Div. 2 Article 502.10 (A) (2) and (B) (2) Class II Div. 1 & 2 Article 503.10 (A) (3) and (B) Class III Div. 1 & 2 Article 620.21 Elevator Wiring Methods Article 645.5 (E) (2) Under Raised Floors
Specifications Approx Inside Bend Radius
9.5 in | 241.3 mm
Specifications Approx Weight Per 100 Ft
198 lbs | 89.8 kg
Specifications Color
BLUE
Specifications Core Material
Galvanized Steel
Specifications Cross Reference
271024 | 55-28-13-03 | 6408-22-00 | CBLA-17 | CBLT-2-1/2 | ULBLUE
Specifications Electrical Trade Size
2-1/2 in | 63 mm
Specifications Industry Certifications
UL Listed & CSA Certified
Specifications Ingress Protection Ip Rating
Ingress Protection (IP) 66/67
Specifications Inside Diameter
2.480 to 2.505 in | 62.992 to 63.627 mm
Specifications Jacket Benefits
Liquid Tight | Oil Resistant
Specifications Jacket Material
Polyvinyl Chloride (PVC)
Specifications Length
50 ft | 15.24 m
Specifications Note
Other colors available upon request.3/8" & 4" trade sizes available on special order.
Specifications Outside Diameter
2.840 to 2.875 in | 72.136 to 73.025 mm
Specifications Packaging
Standard Carton
Specifications Type
CW
