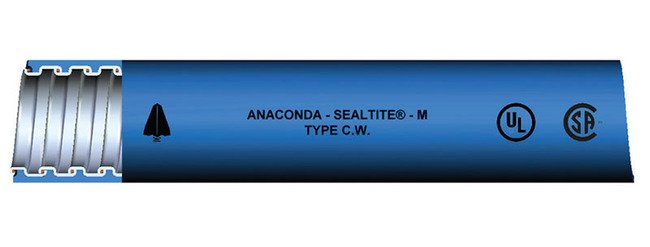

Computer Blue Liquid-Tight Flexible Metal Conduit (LFMC) - Type CW HD

Name: Computer Blue Liquid-Tight Flexible Metal Conduit (LFMC) - Type CW HD
Brand: Anamet Electrical, Inc.
SKU: LIQ-3157af
Price: 149.99 USD
Availability: OutOfStock

SKU:LIQ-3157af

Flexible and protective Computer Blue Liquid-Tight Conduit - Type CW HD for secure and versatile wiring solutions.

$149.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

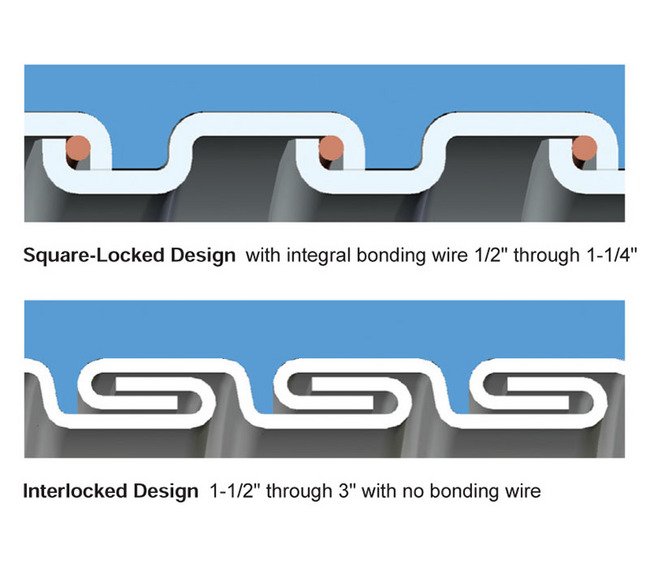

The Computer Blue Liquid-Tight Flexible Metal Conduit (LFMC) - Type CW HD is designed for wiring applications that demand flexibility and protection. With a thermoplastic PVC jacket and hot-dipped galvanized steel core, this conduit ensures a liquid-tight raceway suitable for a variety of installations. It comes with an integral bonding wire, UL listing, CSA certification, and IP 67 rating when used with approved end connectors. Ideal for computer wiring applications, it meets stringent industry standards and offers reliable performance in a wide temperature range.

Product Specifications

Application 0

Computer Wiring Meets Requirements of NECTemperature Range: -40°F to +176°F (-40°C to +80°C)

Installation 0

Conduit used with standard liquid-tight connector for easy installation. IP 67 Rated when installed with approved connectors. Approved for both exposed and concealed locations. Rated for temperature ranges -40ºF to + 176ºF (-40ºC to +80ºC). Approved as an equipment grounding conductor in sizes 1/2" through 1-1/4, if the total grounding path is 6 ft. or less and the circuit conductors are protected by over 20 amps for 1/2" and 60 amps or less for 3/4" through 1-1/4". Suitable for use in hazardous locations per NEC Articles 501 Class I Div. 2, Article 502 Class II Div. 1 & 2, Article 503 Class III Div. 1 & 2. Manufactured in a full range of trade sizes from 1/2" through 3". Approved for direct burial and in concrete trade sizes 1/2" through 3". Complies with UL Standard 360 File No. E18917; CSA C22.2 File No. 158897; and NEC Article 350.

Nec Articles 0

Article 250.118 (6) Equipment Grounding Article 300.22 (D) Information Technology Equipment Article 350 Liquid-Tight Flexible Metal Conduit (LFMC) Article 501.10 (B) (2) Class I Div. 2 Article 502.10 (A) (2) and (B) (2) Class II Div. 1 & 2 Article 503.10 (A) (3) and (B) Class III Div. 1 & 2 Article 620.21 Elevator Wiring Methods Article 645.5 (E) (2) Under Raised Floors

Specifications Approx Inside Bend Radius

5.0 in | 127 mm

Specifications Approx Weight Per 100 Ft

43 lbs | 19.5 kg

Specifications Color

BLUE

Specifications Core Material

Galvanized Steel

Specifications Cross Reference

221014 | 55-09-35-04 | 6403-30-00 | CB | CBLA-12 | CBLT-3/4 | ULBLUE

Specifications Electrical Trade Size

3/4 in | 21 mm

Specifications Industry Certifications

UL Listed & CSA Certified

Specifications Ingress Protection Ip Rating

Ingress Protection (IP) 66/67

Specifications Inside Diameter

0.820 to 0.840 in | 20.828 to 21.336 mm

Specifications Jacket Benefits

Liquid Tight | Oil Resistant

Specifications Jacket Material

Polyvinyl Chloride (PVC)

Specifications Length

100 ft | 30.48 m

Specifications Note

Other colors available upon request.3/8" & 4" trade sizes available on special order.

Specifications Outside Diameter

1.030 to 1.050 in | 26.162 to 26.670 mm

Specifications Packaging

Standard Carton

Specifications Type

Computer Blue Liquid-Tight Flexible Metal Conduit (LFMC) - Type CW HD
