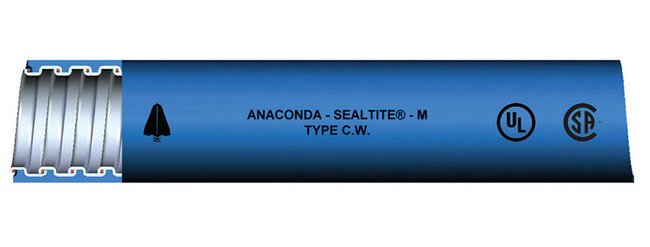

Computer Blue Liquid-Tight Flexible Metal Conduit (LFMC) - Type CW HD 2"

Name: Computer Blue Liquid-Tight Flexible Metal Conduit (LFMC) - Type CW HD 2"
Brand: Anamet Electrical, Inc.
SKU: LIQ-ca35d8
Price: 129.99 USD
Availability: OutOfStock

SKU:LIQ-ca35d8

Upgrade your wiring systems with the flexible and safe Computer Blue Liquid-Tight Conduit (2")!

$129.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Upgrade your wiring systems with the Computer Blue Liquid-Tight Flexible Metal Conduit (LFMC) - Type CW HD. This conduit offers a flexible and liquid-tight raceway constructed of hot-dipped zinc galvanized steel core with a PVC jacket. With UL listing, CSA certification, and IP 67 rating, it ensures safety and reliability in various environments. Suitable for hazardous locations and direct burial, this conduit meets NEC standards and offers easy installation with standard connectors.

Product Specifications

Application 0

Computer Wiring Meets Requirements of NECTemperature Range: -40°F to +176°F (-40°C to +80°C)

Installation 0

Conduit used with standard liquid-tight connector for easy installation. IP 67 Rated when installed with approved connectors. Approved for both exposed and concealed locations. Rated for temperature ranges -40ºF to + 176ºF (-40ºC to +80ºC). Approved as an equipment grounding conductor in sizes 1/2" through 1-1/4, if the total grounding path is 6 ft. or less and the circuit conductors are protected by over 20 amps for 1/2" and 60 amps or less for 3/4" through 1-1/4". Suitable for use in hazardous locations per NEC Articles 501 Class I Div. 2, Article 502 Class II Div. 1 & 2, Article 503 Class III Div. 1 & 2. Manufactured in a full range of trade sizes from 1/2" through 3". Approved for direct burial and in concrete trade sizes 1/2" through 3". Complies with UL Standard 360 File No. E18917; CSA C22.2 File No. 158897; and NEC Article 350.

Nec Articles 0

Article 250.118 (6) Equipment Grounding Article 300.22 (D) Information Technology Equipment Article 350 Liquid-Tight Flexible Metal Conduit (LFMC) Article 501.10 (B) (2) Class I Div. 2 Article 502.10 (A) (2) and (B) (2) Class II Div. 1 & 2 Article 503.10 (A) (3) and (B) Class III Div. 1 & 2 Article 620.21 Elevator Wiring Methods Article 645.5 (E) (2) Under Raised Floors

Specifications Approx Inside Bend Radius

7.0 in | 177.8 mm

Specifications Approx Weight Per 100 Ft

155 lbs | 70.3 kg

Specifications Color

BLUE

Specifications Core Material

Galvanized Steel

Specifications Cross Reference

261024 | 55-28-12-03 | 6407-24-00 | CB | CBLA-16 | CBLT-2 | ULBLUE

Specifications Electrical Trade Size

2 in | 53 mm

Specifications Industry Certifications

UL Listed & CSA Certified

Specifications Ingress Protection Ip Rating

Ingress Protection (IP) 66/67

Specifications Inside Diameter

2.020 to 2.045 in | 51.308 to 51.943 mm

Specifications Jacket Benefits

Liquid Tight | Oil Resistant

Specifications Jacket Material

Polyvinyl Chloride (PVC)

Specifications Length

50 ft | 15.24 m

Specifications Note

Other colors available upon request.3/8" & 4" trade sizes available on special order.

Specifications Outside Diameter

2.340 to 2.375 in | 59.436 to 60.325 mm

Specifications Packaging

Standard Carton

Specifications Type

Computer Blue Liquid-Tight Flexible Metal Conduit (LFMC) - Type CW HD 2"
