Computer Blue Liquid-Tight Flexible Metal Conduit (LFMC) - Type CW HD
Computer Blue Liquid-Tight Flexible Metal Conduit (LFMC) - Type CW HD
SKU:LIQ-18cf45
Flexible Computer Blue LFMC providing liquid-tight raceway wiring, UL Listed & CSA Certified.
Regular price
$369.99
Regular price
Sale price
$369.99
Unit price
per
Initiate Order
Computer Blue Liquid-Tight Flexible Metal Conduit (LFMC) - Type CW HD
$369.99
Quantity: 1
Claim Your Seller Account
Computer Blue Liquid-Tight Flexible Metal Conduit (LFMC) - Type CW HD
$369.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

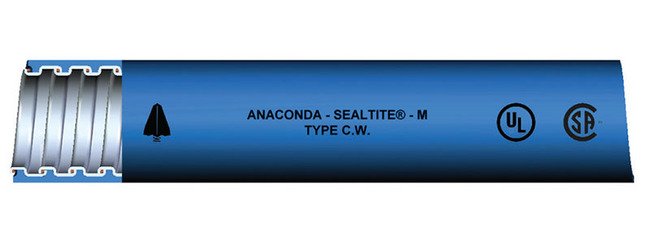

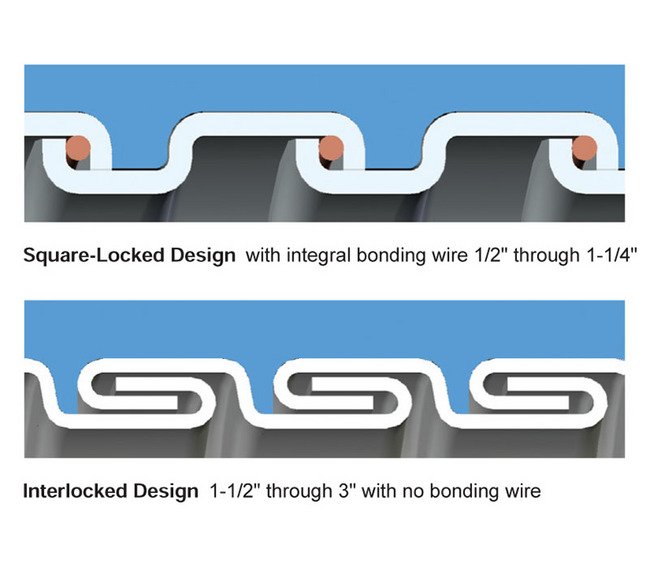

The Computer Blue Liquid-Tight Flexible Metal Conduit (LFMC) Type CW HD is a reliable solution for flexible, liquid-tight raceway wiring. Featuring a thermoplastic PVC jacket with an integral bonding wire, this conduit is constructed from continuously interlocked hot-dipped zinc galvanized steel core. UL listed and CSA certified, it offers an IP 67 rating when installed with approved end connectors. Suitable for a temperature range of -40°F to +176°F, it meets NEC standards for equipment grounding and is approved for hazardous locations as per various NEC articles. Ideal for computer wiring, this conduit is available in a range of industry-standard trade sizes.
Product Specifications
Application 0
Computer Wiring Meets Requirements of NECTemperature Range: -40°F to +176°F (-40°C to +80°C)
Installation 0
Conduit used with standard liquid-tight connector for easy installation. IP 67 Rated when installed with approved connectors. Approved for both exposed and concealed locations. Rated for temperature ranges -40ºF to + 176ºF (-40ºC to +80ºC). Approved as an equipment grounding conductor in sizes 1/2" through 1-1/4, if the total grounding path is 6 ft. or less and the circuit conductors are protected by over 20 amps for 1/2" and 60 amps or less for 3/4" through 1-1/4". Suitable for use in hazardous locations per NEC Articles 501 Class I Div. 2, Article 502 Class II Div. 1 & 2, Article 503 Class III Div. 1 & 2. Manufactured in a full range of trade sizes from 1/2" through 3". Approved for direct burial and in concrete trade sizes 1/2" through 3". Complies with UL Standard 360 File No. E18917; CSA C22.2 File No. 158897; and NEC Article 350.
Nec Articles 0
Article 250.118 (6) Equipment Grounding Article 300.22 (D) Information Technology Equipment Article 350 Liquid-Tight Flexible Metal Conduit (LFMC) Article 501.10 (B) (2) Class I Div. 2 Article 502.10 (A) (2) and (B) (2) Class II Div. 1 & 2 Article 503.10 (A) (3) and (B) Class III Div. 1 & 2 Article 620.21 Elevator Wiring Methods Article 645.5 (E) (2) Under Raised Floors
Specifications Approx Inside Bend Radius
5.0 in | 127 mm
Specifications Approx Weight Per 100 Ft
43 lbs | 19.5 kg
Specifications Color
BLUE
Specifications Core Material
Galvanized Steel
Specifications Cross Reference
221044 | 55-09-35-04 | 6403-45-00 | CB | CBLA-12 | CBLT-3/4
Specifications Electrical Trade Size
3/4 in | 21 mm
Specifications Industry Certifications
UL Listed & CSA Certified
Specifications Ingress Protection Ip Rating
Ingress Protection (IP) 66/67
Specifications Inside Diameter
0.820 to 0.840 in | 20.828 to 21.336 mm
Specifications Jacket Benefits
Liquid Tight | Oil Resistant
Specifications Jacket Material
Polyvinyl Chloride (PVC)
Specifications Length
500 ft | 152.4 m
Specifications Note
Other colors available upon request.3/8" & 4" trade sizes available on special order.
Specifications Outside Diameter
1.030 to 1.050 in | 26.162 to 26.670 mm
Specifications Packaging
Small Reels
Specifications Type
CW
