Computer Blue Liquid-Tight Flexible Metal Conduit (LFMC) - Type CW HD
Computer Blue Liquid-Tight Flexible Metal Conduit (LFMC) - Type CW HD
SKU:LIQ-98b84f
Reliable Computer Blue Liquid-Tight Flexible Metal Conduit (LFMC) - Type CW HD, UL Listed & CSA Certified for safe wiring applications.
Regular price
$119.99
Regular price
Sale price
$119.99
Unit price
per
Initiate Order
Computer Blue Liquid-Tight Flexible Metal Conduit (LFMC) - Type CW HD
$119.99
Quantity: 1
Claim Your Seller Account
Computer Blue Liquid-Tight Flexible Metal Conduit (LFMC) - Type CW HD
$119.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

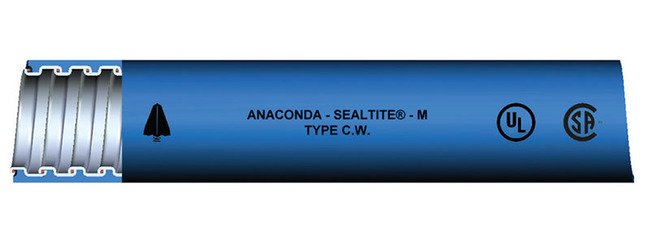

The Computer Blue Liquid-Tight Flexible Metal Conduit (LFMC) - Type CW HD offers a reliable and versatile solution for wiring applications. Constructed from hot dipped zinc galvanized steel core with a PVC jacket, this conduit provides a flexible, liquid-tight raceway suitable for various environments. With UL Listed and CSA Certified industry certifications, it ensures performance and safety. Approved for both exposed and concealed locations, this conduit is ideal for use in hazardous locations as per NEC standards. It meets NEC Articles 350, 501, 502, 503, and more, making it a compliant and efficient choice for computer wiring installations.
Product Specifications
Application 0
Computer Wiring Meets Requirements of NECTemperature Range: -40°F to +176°F (-40°C to +80°C)
Installation 0
Conduit used with standard liquid-tight connector for easy installation. IP 67 Rated when installed with approved connectors. Approved for both exposed and concealed locations. Rated for temperature ranges -40ºF to + 176ºF (-40ºC to +80ºC). Approved as an equipment grounding conductor in sizes 1/2" through 1-1/4, if the total grounding path is 6 ft. or less and the circuit conductors are protected by over 20 amps for 1/2" and 60 amps or less for 3/4" through 1-1/4". Suitable for use in hazardous locations per NEC Articles 501 Class I Div. 2, Article 502 Class II Div. 1 & 2, Article 503 Class III Div. 1 & 2. Manufactured in a full range of trade sizes from 1/2" through 3". Approved for direct burial and in concrete trade sizes 1/2" through 3". Complies with UL Standard 360 File No. E18917; CSA C22.2 File No. 158897; and NEC Article 350.
Nec Articles 0
Article 250.118 (6) Equipment Grounding Article 300.22 (D) Information Technology Equipment Article 350 Liquid-Tight Flexible Metal Conduit (LFMC) Article 501.10 (B) (2) Class I Div. 2 Article 502.10 (A) (2) and (B) (2) Class II Div. 1 & 2 Article 503.10 (A) (3) and (B) Class III Div. 1 & 2 Article 620.21 Elevator Wiring Methods Article 645.5 (E) (2) Under Raised Floors
Specifications Approx Inside Bend Radius
7.0 in | 177.8 mm
Specifications Approx Weight Per 100 Ft
155 lbs | 70.3 kg
Specifications Color
BLUE
Specifications Core Material
Galvanized Steel
Specifications Cross Reference
261044 | 55-28-12-01 | 6407-30-00 | CB | CBLA-16 | CBLT-2 | ULBLUE
Specifications Electrical Trade Size
2 in | 53 mm
Specifications Industry Certifications
UL Listed & CSA Certified
Specifications Ingress Protection Ip Rating
Ingress Protection (IP) 66/67
Specifications Inside Diameter
2.020 to 2.045 in | 51.308 to 51.943 mm
Specifications Jacket Benefits
Liquid Tight | Oil Resistant
Specifications Jacket Material
Polyvinyl Chloride (PVC)
Specifications Length
100 ft | 30.48 m
Specifications Note
Other colors available upon request.3/8" & 4" trade sizes available on special order.
Specifications Outside Diameter
2.340 to 2.375 in | 59.436 to 60.325 mm
Specifications Packaging
Standard Reels
Specifications Type
CW
