Computer Blue Liquid-Tight Flexible Metal Conduit (LFMC) - Type CW HD
Computer Blue Liquid-Tight Flexible Metal Conduit (LFMC) - Type CW HD
SKU:LIQ-56f72d
Durable Computer Blue LFMC with UL listing, CSA certification, and IP 67 rating for reliable and safe wiring solutions.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
Computer Blue Liquid-Tight Flexible Metal Conduit (LFMC) - Type CW HD
$189.99
Quantity: 1
Claim Your Seller Account
Computer Blue Liquid-Tight Flexible Metal Conduit (LFMC) - Type CW HD
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

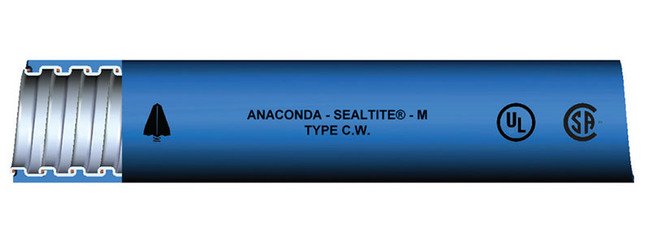

The Computer Blue Liquid-Tight Flexible Metal Conduit (LFMC), Type CW HD, offers a durable and flexible solution for wiring applications. Constructed with continuously interlocked hot dipped zinc galvanized steel core and a flame-retardant PVC jacket, this conduit ensures protection and safety. With UL listing, CSA certification, and IP 67 rating when paired with approved end connectors, this conduit meets stringent industry standards for reliability and performance. Suitable for both exposed and concealed locations, this conduit is ideal for computer wiring applications, maintaining functionality in temperature ranges from -40°F to +176°F (-40°C to +80°C).
Product Specifications
Application 0
Computer Wiring Meets Requirements of NECTemperature Range: -40°F to +176°F (-40°C to +80°C)
Installation 0
Conduit used with standard liquid-tight connector for easy installation. IP 67 Rated when installed with approved connectors. Approved for both exposed and concealed locations. Rated for temperature ranges -40ºF to + 176ºF (-40ºC to +80ºC). Approved as an equipment grounding conductor in sizes 1/2" through 1-1/4, if the total grounding path is 6 ft. or less and the circuit conductors are protected by over 20 amps for 1/2" and 60 amps or less for 3/4" through 1-1/4". Suitable for use in hazardous locations per NEC Articles 501 Class I Div. 2, Article 502 Class II Div. 1 & 2, Article 503 Class III Div. 1 & 2. Manufactured in a full range of trade sizes from 1/2" through 3". Approved for direct burial and in concrete trade sizes 1/2" through 3". Complies with UL Standard 360 File No. E18917; CSA C22.2 File No. 158897; and NEC Article 350.
Nec Articles 0
Article 250.118 (6) Equipment Grounding Article 300.22 (D) Information Technology Equipment Article 350 Liquid-Tight Flexible Metal Conduit (LFMC) Article 501.10 (B) (2) Class I Div. 2 Article 502.10 (A) (2) and (B) (2) Class II Div. 1 & 2 Article 503.10 (A) (3) and (B) Class III Div. 1 & 2 Article 620.21 Elevator Wiring Methods Article 645.5 (E) (2) Under Raised Floors
Specifications Approx Inside Bend Radius
9.5 in | 241.3 mm
Specifications Approx Weight Per 100 Ft
198 lbs | 89.8 kg
Specifications Color
BLUE
Specifications Core Material
Galvanized Steel
Specifications Cross Reference
271054 | 55-28-13-01 | 6408-79-00 | CBLA-17 | CBLT-2-1/2 | ULBLUE
Specifications Electrical Trade Size
2-1/2 in | 63 mm
Specifications Industry Certifications
UL Listed & CSA Certified
Specifications Ingress Protection Ip Rating
Ingress Protection (IP) 66/67
Specifications Inside Diameter
2.480 to 2.505 in | 62.992 to 63.627 mm
Specifications Jacket Benefits
Liquid Tight | Oil Resistant
Specifications Jacket Material
Polyvinyl Chloride (PVC)
Specifications Length
100 ft | 30.48 m
Specifications Note
Other colors available upon request.3/8" & 4" trade sizes available on special order.
Specifications Outside Diameter
2.840 to 2.875 in | 72.136 to 73.025 mm
Specifications Packaging
Standard Reels
Specifications Type
CW
