Computer Blue Liquid-Tight Flexible Metal Conduit (Type CW LFMC)

Name: Computer Blue Liquid-Tight Flexible Metal Conduit (Type CW LFMC)
Brand: Anamet Electrical, Inc.
SKU: LIQ-826b67
Price: 129.99 USD
Availability: OutOfStock

SKU:LIQ-826b67

Flexible and durable Computer Blue LFMC with PVC jacket, UL listed, CSA certified, and IP 67 rated. NEC compliant for various applications.

$129.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

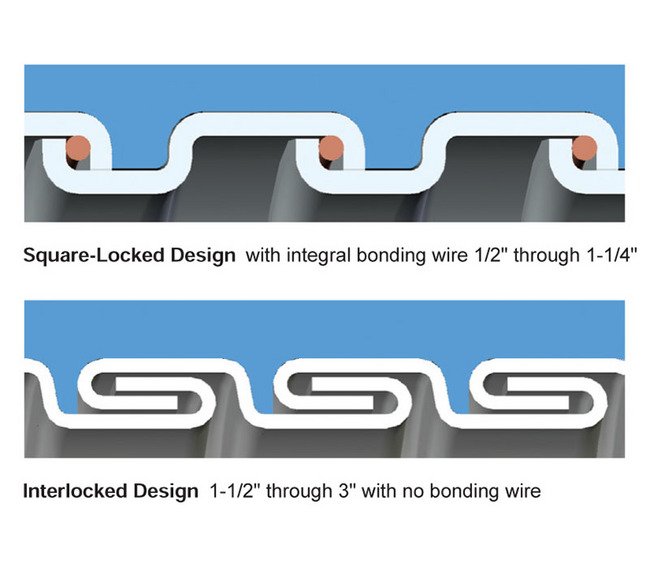

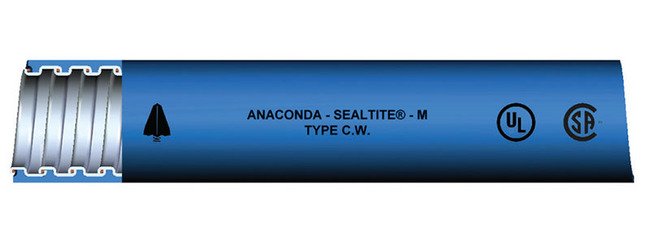

The Type CW HD Computer Blue Liquid-Tight Flexible Metal Conduit (LFMC) is designed for reliable performance in demanding environments. Featuring a thermoplastic PVC jacket with integral bonding wire, this conduit provides a flexible and liquid-tight raceway for wiring. Constructed with continuously interlocked hot-dipped zinc galvanized steel core, it ensures durability and safety. With UL listing, CSA certification, and IP 67 rating when used with approved connectors, this conduit is suitable for a wide range of applications. Complying with NEC standards and suitable for hazardous locations, it offers temperature resistance from -40°F to +176°F.

Product Specifications

Application 0

Computer Wiring Meets Requirements of NECTemperature Range: -40°F to +176°F (-40°C to +80°C)

Installation 0

Conduit used with standard liquid-tight connector for easy installation. IP 67 Rated when installed with approved connectors. Approved for both exposed and concealed locations. Rated for temperature ranges -40ºF to + 176ºF (-40ºC to +80ºC). Approved as an equipment grounding conductor in sizes 1/2" through 1-1/4, if the total grounding path is 6 ft. or less and the circuit conductors are protected by over 20 amps for 1/2" and 60 amps or less for 3/4" through 1-1/4". Suitable for use in hazardous locations per NEC Articles 501 Class I Div. 2, Article 502 Class II Div. 1 & 2, Article 503 Class III Div. 1 & 2. Manufactured in a full range of trade sizes from 1/2" through 3". Approved for direct burial and in concrete trade sizes 1/2" through 3". Complies with UL Standard 360 File No. E18917; CSA C22.2 File No. 158897; and NEC Article 350.

Nec Articles 0

Article 250.118 (6) Equipment Grounding Article 300.22 (D) Information Technology Equipment Article 350 Liquid-Tight Flexible Metal Conduit (LFMC) Article 501.10 (B) (2) Class I Div. 2 Article 502.10 (A) (2) and (B) (2) Class II Div. 1 & 2 Article 503.10 (A) (3) and (B) Class III Div. 1 & 2 Article 620.21 Elevator Wiring Methods Article 645.5 (E) (2) Under Raised Floors

Specifications Approx Inside Bend Radius

6.3 in | 160 mm

Specifications Approx Weight Per 100 Ft

71 lbs | 32.2 kg

Specifications Color

BLUE

Specifications Core Material

Galvanized Steel

Specifications Cross Reference

231044 | 55-09-36-04 | 6404-41-00 | CB | CBLA-13 | CBLT-1 | ULBLUE

Specifications Electrical Trade Size

1 in | 27 mm

Specifications Industry Certifications

UL Listed & CSA Certified

Specifications Ingress Protection Ip Rating

Ingress Protection (IP) 66/67

Specifications Inside Diameter

1.041 to 1.066 in | 26.441 to 27.076 mm

Specifications Jacket Benefits

Liquid Tight | Oil Resistant

Specifications Jacket Material

Polyvinyl Chloride (PVC)

Specifications Length

400 ft | 121.92 m

Specifications Note

Other colors available upon request.3/8" & 4" trade sizes available on special order.

Specifications Outside Diameter

1.290 to 1.315 in | 32.766 to 33.401 mm

Specifications Packaging

Small Reels

Specifications Type

Computer Blue Liquid-Tight Flexible Metal Conduit (Type CW LFMC)
