Concealed Shoulder Cable Railing Ferrule

Concealed Shoulder Cable Railing Ferrule

SKU:ARC-1dfd1d

Concealed shoulder design, perfect for cable tension support on pipe and square tube railings.

Regular price $12.99
Regular price Sale price $12.99
Sale

Initiate Order

Concealed Shoulder Cable Railing Ferrule

Concealed Shoulder Cable Railing Ferrule

$12.99

Quantity: 1

Claim Your Seller Account

Concealed Shoulder Cable Railing Ferrule

Concealed Shoulder Cable Railing Ferrule

$12.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

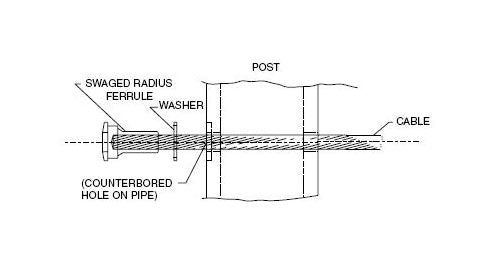

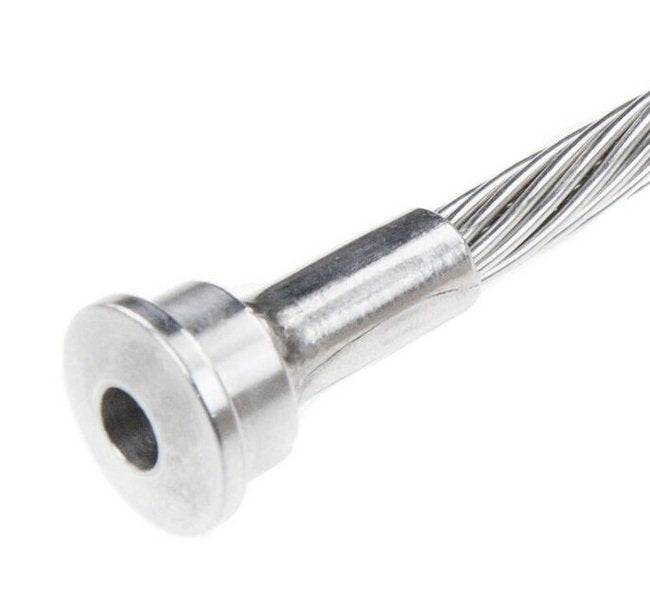

The Concealed Shoulder Cable Railing Ferrule from the Radius Ferrule product line is expertly designed to remain hidden within end posts, showcasing only its dom-shaped head outside. This innovative ferrule features a shoulder at the head for optimum cable tension support, ensuring durability and stability. It is swaged onto the cable and is ideal for pipe and square tube railings. Designed to work seamlessly with Invisiware® receivers or Adjust-A-Jaw Tensioners for proper adjustment, this ferrule comes with a plastic washer to prevent scratches on post surfaces. Enhance your railing project with this sleek and sturdy ferrule.

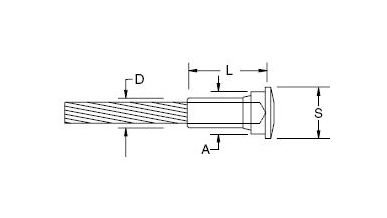

Product Specifications

Specifications A Shoulder Dia
0.531 "
Specifications D Dia After Swaged
0.375 "
Specifications L Length Swaged
1.000 "
Specifications S Head Dia
0.646 "
Specifications Wire Rope Dia
1/4 "
CAGE
0T9L4
NAICS
332510
PSC
4030
