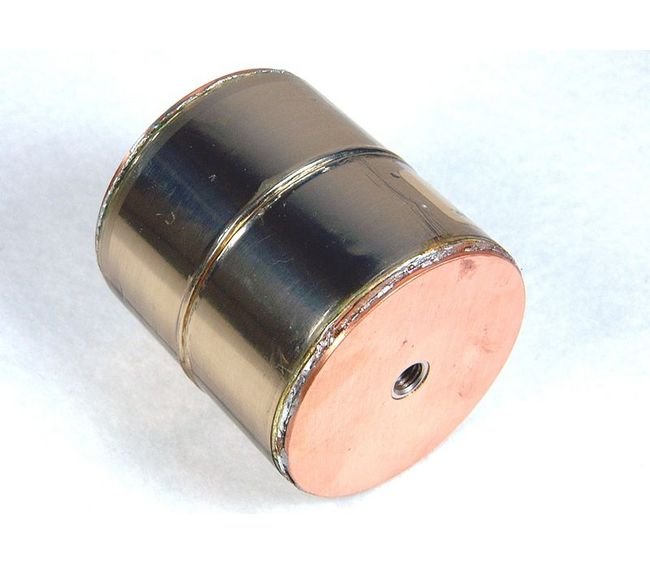

Conduction-Cooled Metallized Film Capacitors - CHN0 Series
Conduction-Cooled Metallized Film Capacitors - CHN0 Series
SKU:MET-9636a3
High-performance conduction-cooled metallized film capacitors for institutional applications. Max capacitance 6.2µF, voltage 600V RMS, cooling by bus bars.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Conduction-Cooled Metallized Film Capacitors - CHN0 Series
$89.99
Quantity: 1
Claim Your Seller Account
Conduction-Cooled Metallized Film Capacitors - CHN0 Series
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The CHN0 Series Metallized Film Capacitors are engineered for high-performance applications, offering a maximum capacitance of 6.2 µF and a working voltage of 600 V RMS. With conduction cooling via bus bars, these capacitors can handle up to 250 kVA of power and 600 A RMS of current. Designed to operate in temperatures up to +90°C, these capacitors feature a compact size with a maximum diameter of 3 1/8 inches and a weight of 0.75 kg. Benefit from low dissipation factor, minimal stray inductance, and a capacitance range of 1.4 to 10 µF with a tolerance of ±10%. Meet your institutional procurement needs with this reliable and efficient solution.
Product Specifications
Specifications Cap
6.2 µF
Specifications Capacitance Range
1.4 to 10 µF
Specifications Capacitance Tolerance
±10% Standard
Specifications Cooling Method
Conduction-cooled by bus bars
Specifications Dissipation Factor
0.1% Maximum
Specifications Fh
37 kHz
Specifications Fl
18 kHz
Specifications Fmax
70 kHz

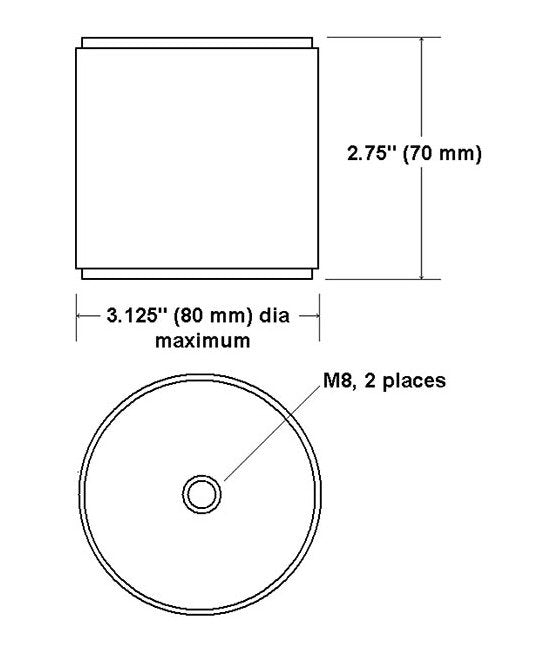

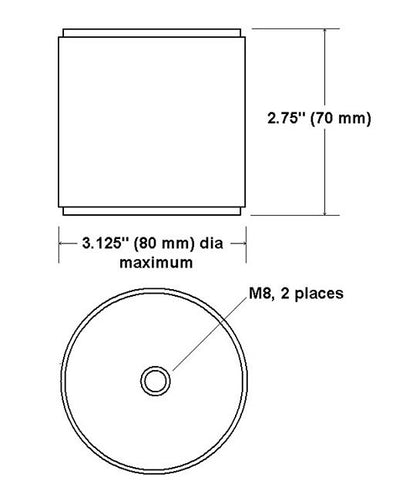

Specifications Height
2 3/4 in | 70 mm
Specifications Imax Rms
600 A
Specifications Max Diameter
3 1/8 in | 80 mm
Specifications Operating Temperature
Up to +90 ºC
Specifications Smax
250 kV·A
Specifications Stray Inductance
Less than 5 nH
Specifications Vmax Rms
600 V
Specifications Weight
0.75 kg | 1.7 lb
