Condux Clevis Head Innerduct Pulling Eyes
Condux Clevis Head Innerduct Pulling Eyes
SKU:PUL-075824
Condux Clevis Head Innerduct Pulling Eyes ensure secure installation & compatibility with Condux harnesses for efficient pull-through tasks.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Condux Clevis Head Innerduct Pulling Eyes
$24.99
Quantity: 1
Claim Your Seller Account
Condux Clevis Head Innerduct Pulling Eyes
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

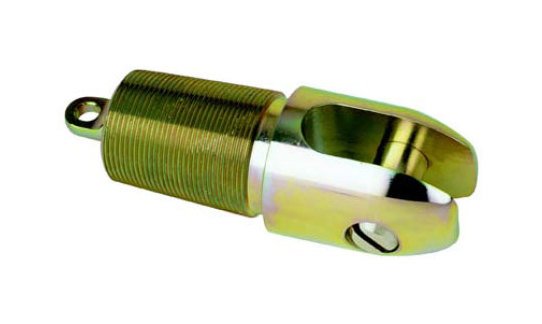

The Condux Clevis Head Innerduct Pulling Eyes are designed with tapered threads and a slotted head featuring a clevis pin for direct attachment to multiple pulling harness leg ends. These pulling eyes ensure secure installation within innerducts, withstanding high pulling tensions recommended by manufacturers. To determine the right size, match your innerduct's I.D. with the dimensions provided. These pulling eyes are compatible with all Condux multiple pulling harnesses, making installations efficient and reliable.
Product Specifications

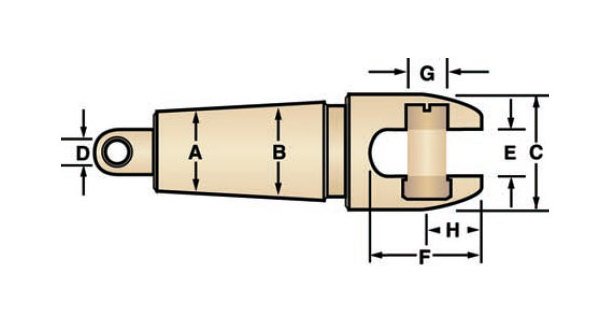

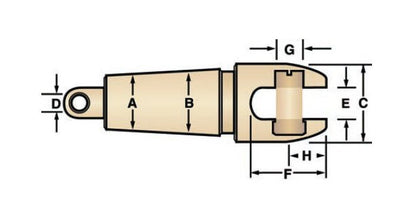

Specifications Hole Diameter D In
0.38
Specifications Hole Diameter D Mm
10
Specifications Innerduct Id Range A To B In
1.68 to 1.81
Specifications Innerduct Id Range A To B Mm
43 to 46
Specifications Max Od C In
2.00
Specifications Max Od C Mm
51
Specifications Nom Size In
1-1/2
Specifications Nom Size Mm
44
Specifications Note
Will fit all Condux multiple pulling harnesses.
Specifications Pin Center H In
0.72
Specifications Pin Center H Mm
18
Specifications Pin Diameter G In
0.63
Specifications Pin Diameter G Mm
16
Specifications Slot Depth F In
1.78
Specifications Slot Depth F Mm
45
Specifications Slot Width E In
0.75
Specifications Slot Width E Mm
19
