Condux Fixed Head Innerduct Pulling Eyes
Condux Fixed Head Innerduct Pulling Eyes
SKU:PUL-ec6993
Maximize pulling strength with Condux Fixed Head Innerduct Pulling Eyes. Secure threading, reliable connection, and exceptional pull-out resistance. Ideal for innerduct installations.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
Condux Fixed Head Innerduct Pulling Eyes
$34.99
Quantity: 1
Claim Your Seller Account
Condux Fixed Head Innerduct Pulling Eyes
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

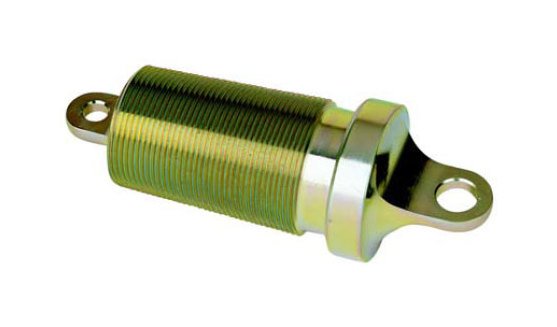

The Condux Fixed Head Innerduct Pulling Eyes are designed for maximum pulling strength, featuring tapered buttress threads that securely thread into the innerduct. These pulling eyes are compatible with Condux swivels, ensuring a reliable connection. With proper sizing and installation, they offer exceptional pull-out resistance until pulling tensions surpass the recommended limits set by innerduct manufacturers. To determine the correct size, measure the innerduct's inside diameter, ensuring it falls within the specified range. Experience durability and reliability with these pulling eyes for your innerduct installation needs.

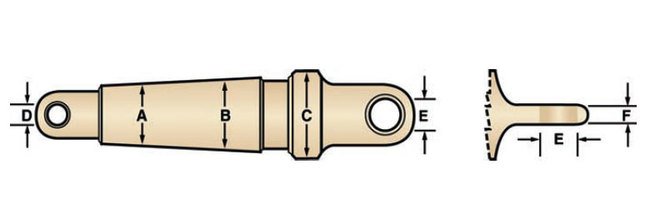

Product Specifications
Specifications Eye Diameter E In
0.50
Specifications Eye Diameter E Mm
13
Specifications Eye Diameter F In
0.25
Specifications Eye Diameter F Mm
6
Specifications Hole Diameter D In
0.25
Specifications Hole Diameter D Mm
6
Specifications Innerduct Id Range A To B In
0.68 to 0.81
Specifications Innerduct Id Range A To B Mm
17 to 21
Specifications Max Od C In
1.13
Specifications Max Od C Mm
29
Specifications Nominal Size In
3/4
Specifications Nominal Size Mm
19
