Condux Fixed Head Innerduct Pulling Eyes
Condux Fixed Head Innerduct Pulling Eyes
SKU:PUL-2b1a88
Enhance pulling strength with Condux Fixed Head Innerduct Pulling Eyes. Secure integration, guaranteed durability for demanding pulls.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Condux Fixed Head Innerduct Pulling Eyes
$29.99
Quantity: 1
Claim Your Seller Account
Condux Fixed Head Innerduct Pulling Eyes
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

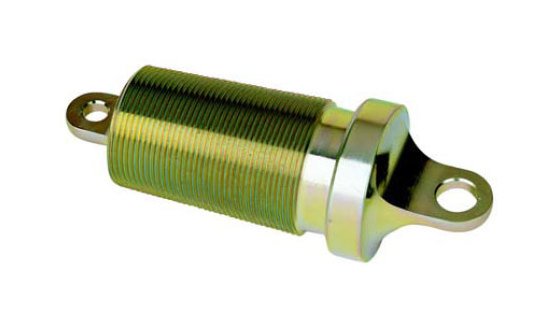

The Condux Fixed Head Innerduct Pulling Eyes feature tapered buttress threads for exceptional pulling strength when securely connected to innerducts. Designed to seamlessly integrate with Condux swivels, these eyes withstand extreme pulling tensions beyond manufacturers’ recommendations. To ensure proper sizing, measure the innerduct's inside diameter (I.D.) within the specified range. These pulling eyes guarantee a secure connection without dislodging during high-tension pulls.

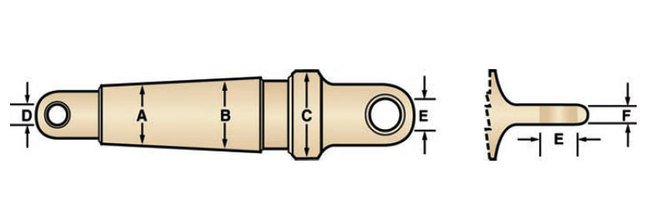

Product Specifications
Specifications Eye Diameter E In
0.63
Specifications Eye Diameter E Mm
16
Specifications Eye Diameter F In
0.25
Specifications Eye Diameter F Mm
6
Specifications Hole Diameter D In
0.38
Specifications Hole Diameter D Mm
10
Specifications Innerduct Id Range A To B In
1.50 to 1.62
Specifications Innerduct Id Range A To B Mm
38 to 41
Specifications Max Od C In
2.13
Specifications Max Od C Mm
54
Specifications Nominal Size In
1-1/2
Specifications Nominal Size Mm
38
