Consew Model 146RBL-3A-1 Sewing Machine
Consew Model 146RBL-3A-1 Sewing Machine
SKU:SEW-ab195c
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Consew Model 146RBL-3A-1 Sewing Machine
$49.99
Quantity: 1
Claim Your Seller Account
Consew Model 146RBL-3A-1 Sewing Machine
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

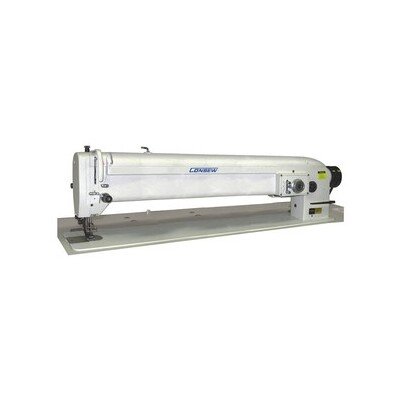

3 Point Zig-Zag Walking Foot Sewing Machine, 10 mm Foot Lift, Unassembled Stand, Servo Motor.
Product Specifications
Additional Information

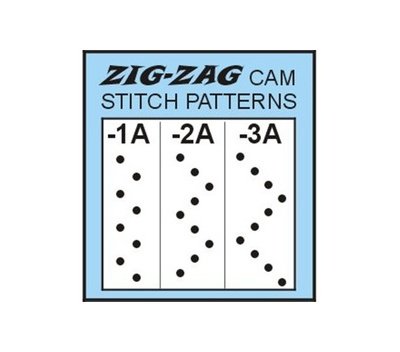

Machine Versions (see picture of stitch patterns):Consew 146RBL-1A-1: 1 Stitch Zig-ZagConsew 146RBL-2A-1: 2 Stitch Zig-ZagConsew 146RBL-3A-1: 3 Stitch Zig-Zag
Applications
For sewing elastic and other stretch materials.For stitching such products as boat and truck covers, tents, awnings, sails, parachutes, tarpaulins, and similar products.Used on such materials as canvas, nylon, vinyl, leather, synthetics, and similar materials.
Features
Three step/two stitch zig-zagUsed on such materials as canvas, nylon, vinyl, leather, synthetics and similar materials.30" long arm for 30 inches of workspace.Large bobbin and horizontal axis transverse rotary hook.Wide zig-zagUpper feed mechanism helps avoid slippage when sewing.Reverse stitchingOptional: Interchangeable between 1A, 2A, and 3A stitches; additional parts required (not included).
Recommended Accessories
Superior 18034 10 Large Metal M Bobbins for Industrial Upholstery Machines Organ 135x17 100 Needles Use Sz 20-25 Walking Foot Uph Machines/Threads Organ 135x17PD Titanium Coat 100 Sewing Machine Needles Last 3x Longer Organ DPx17 135x17 CS Cool Sew PTFE Coated Non Stick Needles Box 100 Organ 135x17-NY2PD Titanium Coat 100 Sewing Machine Needles, Size 20-25 Recommended for Walking Foot Upholstery Machines and Threads #69; to 270 Organ DPx17 135x17 CS LP* Cool Sew PTFE Coated Non Stick Needles 100 Schmetz S135X17 DPx17 A100 Upholstery Sewing Machine Needles 1 Size 10-26 Organ DPx16NW 135x16NW Narrow Wedge Point 100 Needles for Leather Organ 135x16TRI Triangle Point Leather Sewing Machine 100 Needles Sz24-14 Organ DPx16 135x16DIA 135x17 Diamond Point Leather Needles 100 Size 25-14 Schmetz S135X16 100 Diamond Wedge Point Leather Needles Size 18-24 -USA Only Tajima TTG Thread Tension Gauge 200-10: Top Thread, Bobbin Case Thread Juki 400TM3 Towa Griswold BGT3 BTG-3 TM-3, M Bobbin Case Thread Tension Gauge Reliable 100SE Best Buy Operators Swivel Chair, 5 Non Roll Glide Feet Reliable 150SE Swivel Chair (Sew Ergo2) Non Roll Glides, Sewing Knitting Operator Reliable 200SE Sew Ergo Ergonomic Sewing Machine Operator Chair Non Roll Swivel Grace 01-11961 Luminess 5-6'+ LED Floor Lamp Overhead Light Bar on Casters Luminess 10-11'+LED Floor Lamp Free Standing Overhead True Color Light Bar, OnOff Switch, Casters, Adj Height for SewingTable, QuiltFrame, WorkStation Grace 11962 Luminess 2' Extension for 8 or 13' on the 11' Floor Lamp Light Bar (2x5.5' Sections) Superior Dyno SO/Q Quart SewLube Sewing Machine Oil: Reservoir Pans, Refills Superior SO Sew Lube Sewing Machine Oil 1 Gallon for Reservoir Pans Industrial Sewing Machine, Bag Closer or Serger Reservoir Pan Oil 1 Gallon Jug, Bonus Oiler Bottle Superior SO5Gal SewLube Sewing Machine Oil 5 Gallon: Reservoir Pans Superior SO55 SewLube Sewing Machine Oil 55 Gallon Drum, Reservoir Pans ViviLux VLLSR01 3-in-1 Rechargeable Red Laser Straight Stitch Seam Guide, Embroidery Hoop Crosshair, Needle Positioning Dot ViviLux VLLSR02 3in1 Rechargeable Green Laser Straight Stitch Seam Guide Line Attachment
Specifications Arm Length
30 in
Specifications Arm Shape
Long arm
Specifications Bed Size
7 x 33-1/4 in | 178 x 848 mm
Specifications Bobbin Type
212O34-312 | Pre-Wound M
Specifications Clearance Under Foot
10 mm
Specifications Feeding Mechanism
Walking Foot
Specifications Function
Standard
Specifications Hook Type
B79
Specifications Maximum Presser Foot Clearance
25/64 in
Specifications Maximum Sewing Speed
2,500 SPM
Specifications Maximum Stitch Length
5 mm | 5 SPI
Specifications Maximum Zig Zag Width
9.5 mm | 3/8 in
Specifications Motor Type
Servo Motor
Specifications Needle Bar Stroke
1-11/32 in | 34 mm
Specifications Needle Used
135 x 17
Specifications Non United States Us Warranty
30 days parts and labor
Specifications Number Of Needles
1
Specifications United States Us Warranty
90 Days labor on defects in materials and workmanship.
Specifications Workspace Size
765 mm | 30 in
