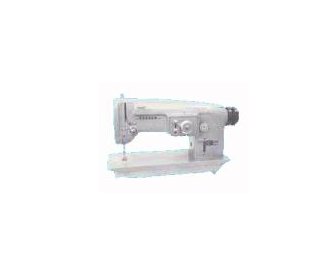

Consew Model 199R-1A Sewing Machine
Consew Model 199R-1A Sewing Machine
SKU:SEW-31a9ec
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Consew Model 199R-1A Sewing Machine
$49.99
Quantity: 1
Claim Your Seller Account
Consew Model 199R-1A Sewing Machine
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Zig-Zag Industrial Sewing Machine, 9.5 mm 3/8" Stitch Width, L Bobbins, 10 mm Foot Lift, 10" Arm Work Space, Power Stand.
Product Specifications
Additional Information
Special fittings available on model 199R-2A for rope end and rope loop stitchingModel 199RB with large bobbin and horizontal axis transverse rotary hookModel 199RBL Long Arm (20 1/2" Free space between needle and arm) and large bobbin and horizontal axis transverse rotary hookModels 199RB and 199RBL available in the same sub-class varieties as is standard bed size Model 199R199r-1A - used for a wide range of products and operations such as edge sewing, patch sewing, attaching a abutting work, applique work and binding on such materials as leather, vinyl, canvas, cloth, lace and similar materials - Federal stitch 304199R-2A - three step/two stitch zig-zag Federal stitch 308For sewing elastic and other stretch materials, as well as for ornamental stitchingFor stitching such products as boat and truck covers, tents, awnings, sails, parachutes, tarpaulins, canvas bags also many items of military and naval equipmentUsed on such materials as canvas, nylon, vinyl, leather, synthetics and similar materialsEspecially desirable where reinforced stitch is necessary (Also available with special fittings for rope tacking operations)Used for rope tacking, making loops in rope and attaching small and medium size ropes to such products as truck covers, tents, sails, hammocks, parachutes, grain bags and many items of military and naval equipment199R-3A - four step/three stitch zig-zagPerforms similar operations as Model 199R-2A with the added advantage of making an additional stitch for extra reinforcement.199R-22 - two needle zig-zag with one bottom thread - Federal stitch 305Used for air-tucking, cording and decorative stitchingFor stitching such products as skirts, blouses, millinery and similar products as well as awnings, soft luggage, canvas bags and similar articles
Applications

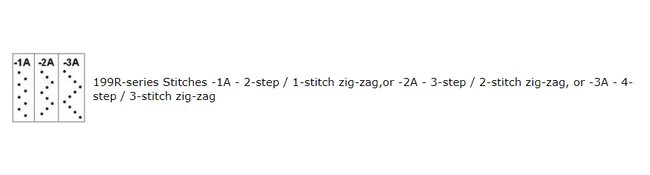

Stitch -1A: Consew 199R-1AUsed for a wide range of products and operations such as edge sewing, patch sewing, attaching and abutting work, applique work and binding on such materials as leather, vinyl, canvas, cloth, lace and similar materialsStitch -2A: Optional MachineFor sewing elastic and other stretch materials, as well as for ornamental stitchingFor stitching such products as boat and truck covers, tents, awnings, sails, parachutes, tarpaulins, canvas bags also many items of military and naval equipmentUsed on such materials as canvas, nylon, vinyl, leather, synthetics and similar materialsEspecially desirable where reinforced stitch is necessaryAlso available with special fittings for rope tacking operationsUsed for rope tacking, making loops in rope and attaching small and medium size ropes to such products as truck covers, tents, sails, hammocks, parachutes, grain bags and many items of military and naval equipmentStitch -3A: Optional MachinePerforms similar operations as Model 199R-2A-1 with the added advantage of making an additional stitch for extra reinforcement.
Features
Horizontal axis transverse rotary hookWide Zig-Zag - Locking Zig-Zag width regulatorStraight stitcher when zig-zag is set to 0mmUpper feed mechanism helps avoid slippage when sewingReverse stitchingLong arm with 10" free space between needle and arm
Included Accessories
Accessories | Instruction Manual
Recommended Accessories
Organ 16X95 PD Titanium 100 Sewing Machine Needles (DBx1 16x257 16x231) Organ 16X95 PD Titanium BP Ball Point Sewing Machine Needles 100/box Organ 16x231 Regular Sharp 100 Industrial Sewing Machine Needles Sz 10-18 Organ 16X231PD 100 Titanium Coat BP Ball Point Sewing Machine Needles Organ 16X231 PD Titanium Coated Box of 100 Sharp Needles, 10Pk x10 Superior 55623S 100 Metal L Bobbins 100 Standard Universal Rotary, Type L forTowa Griswold BTG1 TM1, L Bobbin-Case Thread Tension Gauge 0-400g Pull Superior SR-2 Dual Speed Reducer 3" 6" 9" Pulleys, Install Between Motor & Hand wheel Reliable Sew Quiet 6000SM Variable Speed DC Servo Motor 110V or 220V Reliable 100SE Best Buy Operators Swivel Chair, 5 Non Roll Glide Feet Reliable 150SE Swivel Chair (Sew Ergo2) Non Roll Glides, Sewing Knitting Operator Reliable 200SE Sew Ergo Ergonomic Sewing Machine Operator Chair Non Roll Swivel Superior Dyno SO/Q Quart SewLube Sewing Machine Oil: Reservoir Pans, Refills Superior SO Sew Lube Sewing Machine Oil 1 Gallon for Reservoir Pans Superior SO5Gal SewLube Sewing Machine Oil 5 Gallon: Reservoir Pans Superior SO55 SewLube Sewing Machine Oil 55 Gallon Drum, Reservoir Pans Tajima TTG Thread Tension Gauge 200-10: Top Thread, Bobbin Case Thread A&E Maxi Lock ML520 Sewing Thread 4 Poly Cone Spools x 3000Yds White A&E Maxi Lock ML521 All Purpose Sewing Thread Black 4 Poly Cones x 3000Yds Ea A&E Maxi Lock ML522 Poly Sewing Thread 40wt 4 Cones x3000 Yards Brights A&E GGP2008 Intressa Serger UV Thread Kit 40wt Poly, 4Colors x 600Yd Cones USA
Specifications Arm Length
10 in
Specifications Bed Size
7 x 18-7/8 in | 178 x 480 mm
Specifications Bobbin Type
Metal - B75 | Pre-Wound - L
Specifications Clearance Under Foot
10 mm | 25/64 in
Specifications Hook Type
B70
Specifications Maximum Sewing Speed
3,200 SPM
Specifications Maximum Stitch Length
5 mm | 5 SPI
Specifications Maximum Straight Sewing Speed
3,200 SPM
Specifications Maximum Zig Zag Sewing Speed
3,000 SPM
Specifications Maximum Zig Zag Width
9.5 mm | 3/8 in
Specifications Needle Bar Stroke
1-11/32 in | 34 mm
Specifications Needle Used
16 x 95
Specifications Non United States Us Warranty
30 days parts and labor
Specifications United States Us Warranty
1 year parts, 90 days labor on defects in materials and workmanship.
