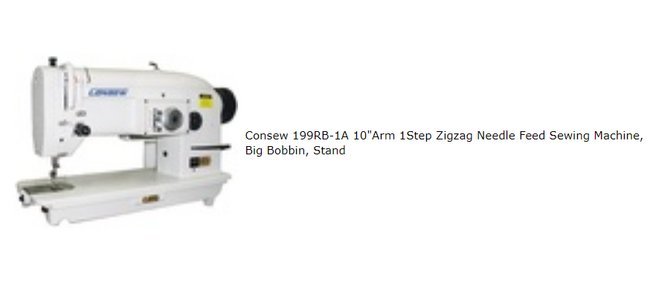

Consew Model 199RB-1A-1 Sewing Machine
Consew Model 199RB-1A-1 Sewing Machine
SKU:SEW-fe846f
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Consew Model 199RB-1A-1 Sewing Machine
$49.99
Quantity: 1
Claim Your Seller Account
Consew Model 199RB-1A-1 Sewing Machine
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
10" Arm 1-Step Zig-Zag Lockstitch Stitch, Single Needle Drop Feed Sewing Machine, Big M Bobbin, Table, Stand and Motor.
Product Specifications
Additional Information
Model 199RB with large bobbin and horizontal axis transverse rotary hookModel 199RBL Long Arm (20 1/2" Free space between needle and arm) and large bobbin and horizontal axis transverse rotary hookModels 199RB and 199RBL available in the same sub-class varieties as is standard bed size Model 199R199r-1A - used for a wide range of products and operations such as edge sewing, patch sewing, attaching a abutting work, applique work and binding on such materials as leather, vinyl, canvas, cloth, lace and similar materials - Federal stitch 304199R-2A - three step/two stitch zig-zag Federal stitch 308For sewing elastic and other stretch materials, as well as for ornamental stitchingFor stitching such products as boat and truck covers, tents, awnings, sails, parachutes, tarpaulins, canvas bags also many items of military and naval equipmentUsed on such materials as canvas, nylon, vinyl, leather, synthetics and similar materialsEspecially desirable where reinforced stitch is necessary (Also available with special fittings for rope tacking operations)Used for rope tacking, making loops in rope and attaching small and medium size ropes to such products as truck covers, tents, sails, hammocks, parachutes, grain bags and many items of military and naval equipment199R-3A - four step/three stitch zig-zagPerforms similar operations as Model 199R-2A with the added advantage of making an additional stitch for extra reinforcement.199R-22 - two needle zig-zag with one bottom thread - Federal stitch 305
Applications
Used for a wide range of products and operations such as edge sewing, patch sewing, attaching and abutting work, applique work and binding on such materials as leather, vinyl, canvas, cloth, lace and similar materials.Federal stitch 304Used for air-tucking, cording and decorative stitchingFor stitching such products as skirts, blouses, millinery and similar products as well as awnings, soft luggage, canvas bags and similar articles
Features
Big Double Capacity "M" BobbinIndustrial Zigzag MachineHorizontal axis transverse rotary hookMaximum width of zig-zag: 3/8" (9.5mm)Straight stitcher when zig-zag is set to 'O' mmLong arm with 10" free space between needle and arm (all 18 7/8" bed models)Locking zig-zag width regulatorReverse stitchingWith large bobbin and horizontal axis transverse rotary hookOptional: Interchangeable between 1A, 2A and 3A stitches; Additional parts required (not included)VERSIONS (see picture of stitch patterns):199RB-1A-1 - 1 Stitch Zig-Zag (304)199RB-2A-1 - 2 Stitch Zig-Zag (308)199RB-3A-1 - 3 Stitch Zig-Zag
Included Accessories
Includes Table | Instruction Manual | Motor | Stand
Recommended Accessories
Alpha Sew P60002 High Shank 1/4" Rolled Hem Presser Foot All Metal Screw On ViviLux VLLSR01 3-in-1 Rechargeable Red Laser Straight Stitch Seam Guide, Embroidery Hoop Crosshair, Needle Positioning Dot ViviLux VLLSR02 3in1 Rechargeable Green Laser Straight Stitch Seam Guide Line Attachment Superior 18034 10 Large Metal M Bobbins for Industrial Upholstery Machines Organ 135x17 DP-17 20 Needles, 2 Packs of 10 Each, 1 Size Both Packages Schmetz S135x17, 10/Pk Needles, Size 100/16 Baton Rouge Retail StoreSchmetz S135X17 DPx17 A100 Upholstery Sewing Machine Needles 1 Size 10-26 Organ 135x17 100 Needles Use Sz 20-25 Walking Foot Uph Machines/Threads Organ DPx17 135x17 CS LP Cool Sew PTFE Coated Non Stick Needles 100 Organ DPx17 135x17 CS Cool Sew PTFE Coated Non Stick Needles Box 100 Organ 135x17-NY2PD Titanium Coat 100 Sewing Machine Needles, Size 20-25 Recommended for Walking Foot Upholstery Machines and Threads #69; to 270 Organ 135x17PD Titanium Coat 100 Sewing Machine Needles Last 3x Longer Organ DPx16NW 135x16NW Narrow Wedge Point 100 Needles for Leather Organ DPx16 135x16DIA 135x17 Diamond Point Leather Needles 100 Size 25-14 Organ 135x16TRI Triangle Point Leather Sewing Machine 100 Needles Sz24-14 Schmetz S135X16 100 Diamond Wedge Point Leather Needles Size 18-24 -USA Only Reliable 100SE Best Buy Operators Swivel Chair, 5 Non Roll Glide Feet Reliable 150SE Swivel Chair (Sew Ergo2) Non Roll Glides, Sewing Knitting Operator Reliable 200SE Sew Ergo Ergonomic Sewing Machine Operator Chair Non Roll Swivel Superior SR-2 Dual Speed Reducer 3" 6" 9" Pulleys, Install Between Motor & Hand wheel Reliable Sew Quiet 6000SM Variable Speed DC Servo Motor 110V or 220V Grace 01-11961 Luminess 5-6'+ LED Floor Lamp Overhead Light Bar on Casters
Specifications Arm Length
10 in
Specifications Bobbin Type
Metal 2120304-312
Specifications Clearance Under Foot
6 mm | 15/64 in
Specifications Feeding Mechanism
Drop Feed
Specifications Function
Standard
Specifications Hook Type
B79
Specifications Maximum Sewing Speed
3,200 SPM
Specifications Maximum Stitch Length
5 mm | 5 SPI
Specifications Maximum Zig Zag Width
9.5 mm | 3/8 in
Specifications Needle Bar Stroke
1-11/32 in | 34 mm
Specifications Needle Used
135 x 17
Specifications Non United States Us Warranty
30 days parts and labor
Specifications Number Of Needles
1
Specifications United States Us Warranty
1 year parts, 90 days labor on defects in materials and workmanship.
Specifications Workspace
Standard
Specifications Workspace Size
258 mm | 10 in
