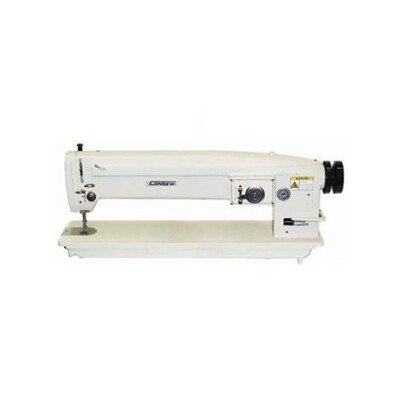

Consew Model 199RBL-2A-1 Sewing Machine
Consew Model 199RBL-2A-1 Sewing Machine
SKU:SEW-b55e14
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Consew Model 199RBL-2A-1 Sewing Machine
$49.99
Quantity: 1
Claim Your Seller Account
Consew Model 199RBL-2A-1 Sewing Machine
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
3-Step 2 Stitch Zig-Zag Sewing Machine/Stand.Single Needle, Drop Feed, Zig-Zag, Lockstitch Machine.
Product Specifications
Additional Information
Model 199RB with large bobbin and horizontal axis transverse rotary hook.Model 199RBL Long Arm (20 1/2" Free space between needle and arm) and large bobbin and horizontal axis transverse rotary hook.Models 199RB and 199RBL available in the same sub-class varieties as is standard bed size Model 199R.199r-1A - used for a wide range of products and operations such as edge sewing, patch sewing, attaching an abutting work, applique work and binding on such materials as leather, vinyl, canvas, cloth, lace and similar materials - Federal stitch 304.199R-2A - three-step/two stitch zig-zag Federal stitch 308.
Applications
For sewing elastic and other stretch materials, as well as for ornamental stitching.For stitching such products as boat and truck covers, tents, awnings sails, parachutes, tarpaulins, canvas bags, also many items of military and naval equipment.Used on such materials as canvas, nylon, vinyl, leather, synthetics, and similar materials.Especially desirable where reinforced stitch is necessary.Also available with special fittings for rope tacking operations.Used for rope tacking, making loops in rope and attaching small and medium size ropes to such products as truck covers, tents, sails, hammocks, parachutes, grain bags and many items of military and naval equipment.Used for air-tucking, cording, and decorative stitching.For stitching such products as skirts, blouses, millinery, and similar products as well as awnings, soft luggage, canvas bags, and similar articles
Features
Industrial Zig-Zag MachineReverse Feed, Combination Zig-Zag and Straight StitcherHorizontal axis transverse rotary hookStraight stitcher when zig-zag is set to '0' mm.Long arm with 10" free space between needle and arm (all 18 7/8" bed models)Locking zig-zag width regulator.Reverse stitchingSpecial fittings available on model 199R-2A for rope end and rope loop stitching.Optional: Interchangeable between 1A, 2A & 3A stitches; Additional parts required (not included)
Included Accessories
Instruction Manual | Motor | Stand | Table
Recommended Accessories
Tajima TTG Thread Tension Gauge 200-10: Top Thread, Bobbin Case Thread Organ 135x17 100 Needles Use Sz 20-25 Walking Foot Uph Machines/Threads Organ 135x17PD Titanium Coat 100 Sewing Machine Needles Last 3x Longer Organ 135x17-NY2PD Titanium Coat 100 Sewing Machine Needles, Size 20-25 Recommended for Walking Foot Upholstery Machines and Threads #69; to 270 Organ DPx17 135x17 CS Cool Sew PTFE Coated Non Stick Needles Box 100 Organ DPx17 135x17 CS LP* Cool Sew PTFE Coated Non Stick Needles 100 Organ DPx16NW 135x16NW Narrow Wedge Point 100 Needles for Leather Organ DPx16 135x16DIA 135x17 Diamond Point Leather Needles 100 Size 25-14 Organ 135x16TRI Triangle Point Leather Sewing Machine 100 Needles Sz24-14 Schmetz S135X17 DPx17 A100 Upholstery Sewing Machine Needles 1 Size 10-26 Schmetz S135X16 100 Diamond Wedge Point Leather Needles Size 18-24 -USA Only Goldstar GS-50 Diode LED Sewing Machine Lamp Light with Clamp L.E.D-O-Brite LED28 Task Lamp Light 28 LED Bulbs Honeycomb 2/48W Equiv Grace 01-11961 Luminess 5-6'+ LED Floor Lamp Overhead Light Bar on Casters Luminess 10-11'+LED Floor Lamp Free Standing Overhead True Color Light Bar, OnOff Switch, Casters, Adj Height for SewingTable, QuiltFrame, WorkStation Grace 11962 Luminess 2' Extension for 8 or 13' on the 11' Floor Lamp Light Bar (2x5.5' Sections) Superior Dyno SO/Q Quart SewLube Sewing Machine Oil: Reservoir Pans, Refills Superior SO Sew Lube Sewing Machine Oil 1 Gallon for Reservoir Pans Superior SO5Gal SewLube Sewing Machine Oil 5 Gallon: Reservoir Pans Superior SO55 SewLube Sewing Machine Oil 55 Gallon Drum, Reservoir Pans
Specifications Arm Shape
Long arm
Specifications Bed Size
7 x 18-7/8 in | 178 x 480 mm
Specifications Bobbin Type
2120304-312 | Pre-Wound M
Specifications Clearance Under Foot
6 mm
Specifications Feeding Mechanism
Needle Feed
Specifications Hook Type
B79
Specifications Maximum Presser Foot Clearance
15/64 in
Specifications Maximum Sewing Speed
3,200 SPM
Specifications Maximum Stitch Length
5 mm | 5 SPI
Specifications Maximum Straight Sewing Speed
2,000 SPM
Specifications Maximum Zig Zag Sewing Speed
2,000 SPM
Specifications Maximum Zig Zag Width
9.5 mm | 3/8 in
Specifications Needle Bar Stroke
1-11/32 in | 34 mm
Specifications Needle Used
135 x 17
Specifications Non United States Us Warranty
30 days parts and labor
Specifications Number Of Needles
1
Specifications United States Us Warranty
1 year parts, 90 days labor on defects in materials and workmanship.
Specifications Workspace Size
258 mm | 10 in
