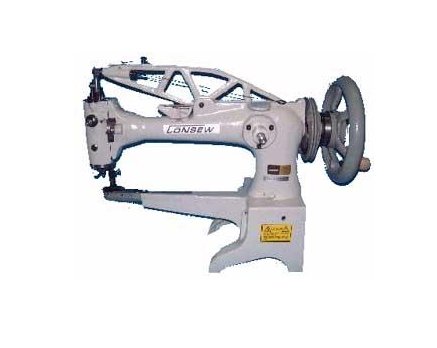

Consew Model 29B Sewing Machine
Consew Model 29B Sewing Machine
SKU:SEW-4899f9
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

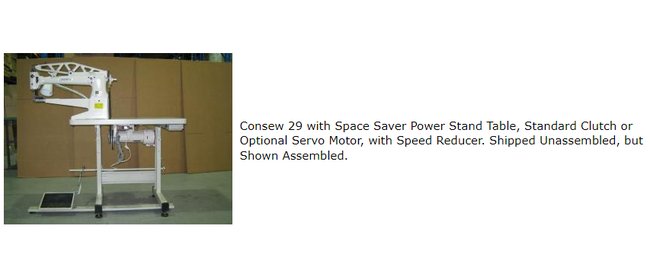

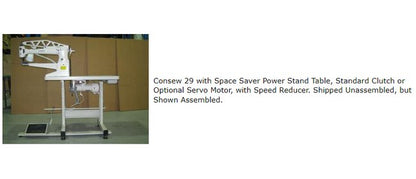

Big Bobbin, 12" Arm, 1-4/32" Cylinder, Shoe Patch Leather Stitcher, Unassembled Pedestal Power Stand.
Product Specifications
Applications
Repairing of leather materials and shoe uppers.
Features
Uses 29x3(332) Round Point or 29x4 (332LL) Wedge Point NeedlesOscillating ShuttleLarge Hook and Big Bobbin12" Work Space right of needleDirectional Rotating Top Feed Walking Foot1" Diameter Narrow Cylinder ArmIndustrial Shoe Repair MachineKD Knocked Down Unassembled Power StandUsed for repairing leather materials and shoe uppersExtra small cylinder bed armUniversal upper feed for stitching in any direction without turning workHandwheel can be mounted on front or right end of machineWheel pulley "V" grooved for motor driveDouble ended needle plate with different size holes at back end to accommodate various sizes of needlesAdjustable thread take-up leverAdjustable presser foot pressure and thread tensionMachine can be driven by foot treadle, hand crank or electric motor
Included Accessories
Bobbin Winder | Bobbins | Instruction Manual | Needles | Thread Stand
Note
Class 29 leather stitcher shoe patch type machines have a foot that can rotate. It can sew up to 7mm thick and has the most narrow cylinder arm of any industrial sewing machine.
Recommended Accessories
Consew 9604-LB 10 Pack Large B Bobbins, 29B, 29BL Shoe Patch Machines Organ 29x4 Leather Point 100 Needles for Consew 29 Shoe Patch Machines Superior SO Sew Lube Sewing Machine Oil 1 Gallon for Reservoir Pans Industrial Sewing Machine, Bag Closer or Serger Reservoir Pan Oil 1 Gallon Jug, Bonus Oiler Bottle Superior SR-2 Dual Speed Reducer 3" 6" 9" Pulleys, Install Between Motor & Hand wheel L.E.D-O-Brite LED28 Task Lamp Light 28 LED Bulbs Honeycomb 2/48W Equiv Tajima TTG Thread Tension Gauge 200-10: Top Thread, Bobbin Case Thread
Specifications Arm Length
12 in
Specifications Clearance Under Foot
10.5 mm | 13/32 in
Specifications Cylinder Bed Depth
1-3/32 in | 29.4 mm
Specifications Cylinder Width
1-3/32 in | 29.4 mm
Specifications Feeding Mechanism
Universal
Specifications Function
Standard
Specifications Gross Weight
70.5 lb | 32 kg
Specifications Maximum Sewing Speed
500 SPM
Specifications Maximum Stitch Length
1 to 7 mm | 3.5 SPI
Specifications Needle Used
29 x 3, Style 3741
Specifications Net Weight
62 lb | 28 kg
Specifications Non United States Us Warranty
30 days parts and labor
Specifications Number Of Needles
1
Specifications Total Carton Size
3.2 ft³
Specifications United States Us Warranty
30 Days labor on defects in materials and workmanship.
Specifications Workspace
Standard
Specifications Workspace Size
310 mm | 12 in
