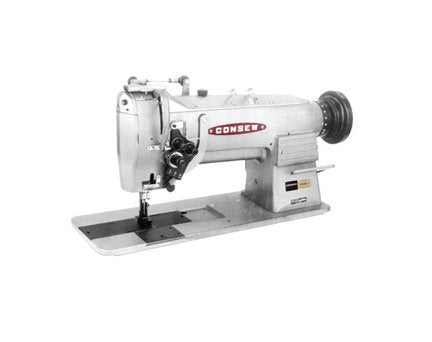

Consew Model 328RB-2 Sewing Machine
Consew Model 328RB-2 Sewing Machine
SKU:SEW-9040e3
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

Double Needle Split Bar Walking Foot Needle Feed Sewing Machine, 8.5 mm Lift, 4 SPI, Safety Clutch, Top M bobbins, Power Stand.
Product Specifications
Applications
For medium to heavy-duty materials such as leather, canvas, vinyl and various laminated and coated materialsDesigned for sewing operations which require decorative or functional angular stitching such as collars, lapels, pockets, pocket flaps, etc.Used for stitching such products as men's, ladies' and children's coats, ski wear, jeans, handbags and travel ware accessoriesGeneral parallel / two-needle stitching. Top stitching with split bar for angular sewing turns.
Features
Split Needle Bar: one needle stays in the material while the other continues sewing. Then the operator turns the material, the needle continues sewing until it catches up to the other needle and they sew together again. This is how our split needle bar machine works.Compound feed, walking foot mechanism assures perfect feeding of sewing materialLarge hooks and bobbin cases with their own thread take-up mechanism assure uniform and perfect stitching with minimal bobbin changesEasy operation of disengage able right and left needle bars by use of finger-touch leverCentra® Lube semi-automatic lubrication systemAutomatic hook lubricationOil fed take-upStitches per minute - 2200Reverse stitchingVarious gauge sets availableSafety clutch protects the hooks from being damagedSimple adjustment permits raising and lowering the center foot which allows for sewing different thicknesses of material
Recommended Accessories
Tajima TTG Thread Tension Gauge 200-10: Top Thread, Bobbin Case Thread Organ 135x17 100 Needles Use Sz 20-25 Walking Foot Uph Machines/Threads Organ 135x17PD Titanium Coat 100 Sewing Machine Needles Last 3x Longer Organ 135x17-NY2PD Titanium Coat 100 Sewing Machine Needles, Size 20-25 Recommended for Walking Foot Upholstery Machines and Threads #69; to 270 Organ DPx17 135x17 CS Cool Sew PTFE Coated Non Stick Needles Box 100 Organ DPx17 135x17 CS LP* Cool Sew PTFE Coated Non Stick Needles 100 Organ DPx16 135x16DIA 135x17 Diamond Point Leather Needles 100 Size 25-14 Organ DPx16NW 135x16NW Narrow Wedge Point 100 Needles for Leather Organ 135x16TRI Triangle Point Leather Sewing Machine 100 Needles Sz24-14 Schmetz S135X17 DPx17 A100 Upholstery Sewing Machine Needles 1 Size 10-26 Schmetz S135X16 100 Diamond Wedge Point Leather Needles Size 18-24 -USA Only Techsew SR Speed Reducer Slows Down RPM on Industrial Sewing Machines Superior SR-2 Dual Speed Reducer 3" 6" 9" Pulleys, Install Between Motor & Hand wheel Reliable 100SE Best Buy Operators Swivel Chair, 5 Non Roll Glide Feet Reliable 150SE Swivel Chair (Sew Ergo2) Non Roll Glides, Sewing Knitting Operator Reliable 200SE Sew Ergo Ergonomic Sewing Machine Operator Chair Non Roll Swivel Superior Dyno SO/Q Quart SewLube Sewing Machine Oil: Reservoir Pans, Refills Superior SO Sew Lube Sewing Machine Oil 1 Gallon for Reservoir Pans Superior SO5Gal SewLube Sewing Machine Oil 5 Gallon: Reservoir Pans Superior SO55 SewLube Sewing Machine Oil 55 Gallon Drum, Reservoir Pans
Specifications Bed Size
7 x 20-3/8 in | 177 x 518 mm
Specifications Clearance Under Foot
8.5 mm | 11/32 in
Specifications Feeding Mechanism
Walking Foot
Specifications Function
Standard
Specifications Hook Type
16407
Specifications Maximum Sewing Speed
2,200 SPM
Specifications Maximum Stitch Length
6.5 mm | 4 SPI
Specifications Motor Type
Clutch Motor | Servo Motor
Specifications Needle Bar Stroke
1-1/4 in | 32 mm
Specifications Needle Distances
1/8" (3.2 mm) to 1"(25.4 mm) (1/4") is Standard
Specifications Needle Used
135 x 17
Specifications Non United States Us Warranty
30 days parts and labor
Specifications Number Of Needles
2
Specifications Stitch Types
301
Specifications United States Us Warranty
90 Days labor on defects in materials and workmanship.
Specifications Workspace
Standard
Specifications Workspace Size
258 mm | 10 in
Specifications Work Surface Size
54 x 51 mm | 2-1/8 x 2 in
