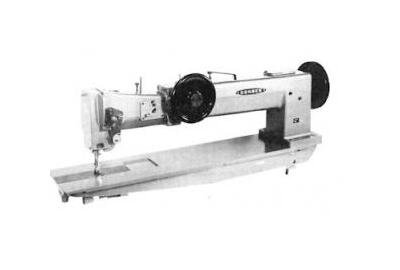

Longarm Extra Heavy-Duty, Single Needle, Walking Foot Needle Feed Industrial Sewing Machine and Unassembled Power Stand.
Product Specifications
Applications
Suitable for sewing extra heavyweight materials such as canvas, vinyl, leather, synthetics, and various coated, laminated and rubberized fabrics.Designed for stitching such products as tents, tarps, awnings, truck covers, auto, marine and furniture upholstery, sails, matting, carpets, polishing wheels, mops, luggage, construction barriers, field covers, divider curtains, fabric structures, and heavy bulky products.Model 745R suitable for stitching double seams and lap seaming.
Features
Compound feed, walking foot mechanism insures positive and even feeding of the material.Safety clutch protects the hook(s) from being damaged in case of accidental strain.Reverse feed operated by foot pedalCentralized arm lubricationReservoir-oiled hook(s) with micrometric control valve.Presser foot locking leverBuilt-in bobbin winder.Push button stitch regulator.Extra heavy-duty top shaft with four ball bearings for support.Extra large bobbins(s) and vertical axis hook(s) for use of heavy thread; also allows for longer operation between bobbin changes.High liftFront hand-wheel (on 30" arm) allows for easy positioning of the needle(s).744RP/745RP are also available with optional factory-installed, feed-synchronized puller. Puller mechanism is completely concealed and does not restrict workspace.
Included Accessories
Instruction Manual | Warranty Card
Specifications Arm Length
20 in
Specifications Arm Shape
Long arm
Specifications Bobbin Type
70141
Specifications Feeding Mechanism
Walking Foot
Specifications Hook Type
70140
Specifications Maximum Presser Foot Clearance
25/32 in
Specifications Maximum Sewing Speed
1,500 SPM
Specifications Maximum Stitch Length
25/64 SPI
Specifications Needle Bar Stroke
1-27/32 in
Specifications Needle Spacing
1/4 in
Specifications Needle Used
7 x 3 (DY x 3)
Specifications Non United States Us Warranty
30 days parts and labor
Specifications Stitch Types
301
Specifications United States Us Warranty
90 Days labor on defects in materials and workmanship.
Specifications Voltage Options
110 V | 220 V
