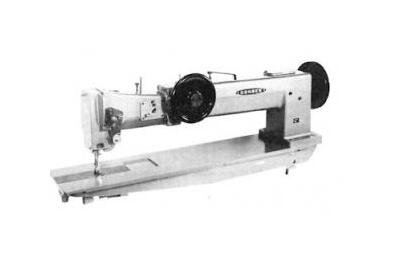

Double Needle Walking Foot Industrial Sewing Machine.
Product Specifications
Applications
Suitable for sewing extra heavyweight materials such as canvas, vinyl, leather, synthetics, and various coated, laminated and rubberized fabrics.Designed for stitching such products as tents, tarps, awnings, truck covers, auto, marine and furniture upholstery, sails, matting, carpets, polishing wheels, mops, luggage, construction barriers, field covers, divider curtains, fabric structures, and heavy bulky products.Model 745R suitable for stitching double seams and lap seaming.
Features
Compound feed, walking foot mechanism insures positive and even feeding of the material.Safety clutch protects the hook(s) from being damaged in case of accidental strain.Reverse feed operated by foot pedalCentralized arm lubricationReservoir-oiled hook(s) with micrometric control valvePresser foot locking leverBuilt-in bobbin winderPush button stitch regulatorExtra heavy-duty top shaft with four ball bearings for support.Extra large bobbins(s) and vertical axis hook(s) for use of heavy thread; also allows for longer operation between bobbin changes.High liftFront hand-wheel (on 30" arm) allows for easy positioning of the needle(s).744RP/745RP are also available with optional factory-installed, feed-synchronized puller. Puller mechanism is completely concealed and does not restrict workspace.
Included Accessories
Instruction Manual | Motor | Stand | Table
Recommended Accessories
Organ 7X4 Leather Point Needles 100 for Singer Class 7 Sewing Machines Organ DYx3F 100 Chrome Needles (Interchangeable with needle systems 7x1 7x3 794 794H PD) for Singer Consew Juki Etc Heavy Duty Sewing Machines Reliable SewQuiet 6000SM Variable Speed DC Servo Motor 110V or 220V Superior Dyno SO/Q Quart SewLube Sewing Machine Oil: Reservoir Pans, Refills Superior SO Sew Lube Sewing Machine Oil 1 Gallon for Reservoir Pans Superior SO5Gal SewLube Sewing Machine Oil 5 Gallon: Reservoir Pans Superior SO55 SewLube Sewing Machine Oil 55 Gallon Drum, Reservoir Pans Luminess 10-11'+LED Floor Lamp Free Standing Overhead True Color Light Bar, OnOff Switch, Casters, Adj Height for SewingTable, QuiltFrame, WorkStation Grace 11962 Luminess 2' Extension for 8 or 13' on the 11' Floor Lamp Light Bar (2x5.5' Sections)
Specifications Arm Length
20 in
Specifications Arm Shape
Long arm
Specifications Bobbin Type
70141
Specifications Feeding Mechanism
Walking Foot
Specifications Hook Type
70140
Specifications Maximum Presser Foot Clearance
25/32 in
Specifications Maximum Sewing Speed
1,500 SPM
Specifications Maximum Stitch Length
25/64 SPI
Specifications Motor Type
Clutch Motor | Servo Motor
Specifications Needle Bar Stroke
1-27/32 in
Specifications Needle Spacing
1/4 in
Specifications Needle Used
7 x 3 (DY x 3)
Specifications Non United States Us Warranty
30 days parts and labor
Specifications Optional Needle Gauge
1/4 in | 3/8 in | 1/2 in | 3/4 in | 1 in | 1-1/4 in
Specifications Stitch Types
301
Specifications United States Us Warranty
90 Days labor on defects in materials and workmanship.
Specifications Voltage Options
110 V | 220 V
Specifications Workspace Size
54 x 51 mm | 2-1/8 x 2 in
