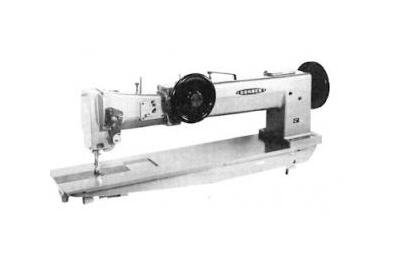

Consew Model 745R-20P Sewing Machine
Consew Model 745R-20P Sewing Machine
SKU:SEW-7cdcb7
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Consew Model 745R-20P Sewing Machine
$49.99
Quantity: 1
Claim Your Seller Account
Consew Model 745R-20P Sewing Machine
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Double Needle Feed Walking Foot Sewing Machine, Safety Clutch.
Product Specifications
Applications
Suitable for sewing extra heavyweight materials such as canvas, vinyl, leather, synthetics and various coated, laminated and rubberized fabrics.Designed for stitching such products as tents, tarps, awnings, truck covers, auto, marine and furniture upholstery, sails, matting, carpets, polishing wheels, mops, luggage, construction barriers, field covers, divider curtains, fabric structures and heavy bulky products.Model 745R suitable for stitching double seams and lap seaming
Features
Compound feed, walking foot mechanism insures positive and even feeding of the materialSafety clutch protects the hook(s) from being damaged in case of accidental strainReverse feed operated by foot pedalCentralized arm lubricationReservoir-oiled hook(s)( with micrometric control valvePresser foot locking leverBuilt-in bobbin winderPush button stitch regulator.Extra heavy-duty top shaft with four ball bearings for support.Extra large bobbins(s) and vertical axis hook(s) for use of heavy thread; also allows for longer operation between bobbin changes.High liftFront hand-wheel (on 30" arm) allows for easy positioning of the needle(s)744RP/745RP are also available with factory-installed, feed-synchronized puller. Puller mechanism is completely concealed and does not restrict work space.
Included Accessories
Motor | Stand | Table
Recommended Accessories
Tajima TTG Thread Tension Gauge 200-10: Top Thread, Bobbin Case Thread Organ DYx3F 100 Chrome Needles (Interchangeable with needle systems 7x1 7x3 794 794H PD) for Singer Consew Juki Etc Heavy Duty Sewing Machines Organ 7X4 Leather Point Needles 100 for Singer Class 7 Sewing Machines Organ DYx3PD 100 Titanium Coated Needles Same as 7x1, 7x3, 794, 794H in PD Perfect Durability for Singer, Consew, Juki, Heavy Duty Sewing Machines* Superior 18034 10 Large Metal M Bobbins for Industrial Upholstery Machines Reliable 100SE Best Buy Operators Swivel Chair, 5 Non Roll Glide Feet Reliable 150SE Swivel Chair (Sew Ergo2) Non Roll Glides, Sewing Knitting Operator Reliable 200SE Sew Ergo Ergonomic Sewing Machine Operator Chair Non Roll Swivel Superior Dyno SO/Q Quart SewLube Sewing Machine Oil: Reservoir Pans, Refills Superior SO Sew Lube Sewing Machine Oil 1 Gallon for Reservoir Pans Superior SO5Gal SewLube Sewing Machine Oil 5 Gallon: Reservoir Pans Superior SO55 SewLube Sewing Machine Oil 55 Gallon Drum, Reservoir Pans Luminess 10-11'+LED Floor Lamp Free Standing Overhead True Color Light Bar, OnOff Switch, Casters, Adj Height for SewingTable, QuiltFrame, WorkStation Grace 11962 Luminess 2' Extension for 8 or 13' on the 11' Floor Lamp Light Bar (2x5.5' Sections)
Specifications Arm Length
20 in
Specifications Bobbin Type
70141
Specifications Feeding Mechanism
Walking Foot
Specifications Hook Type
70140
Specifications Maximum Sewing Speed
1,500 SPM
Specifications Maximum Stitch Length
10 mm | 25/64 SPI
Specifications Needle Bar Stroke
1-27/32 in
Specifications Needle Spacing
1/4 in
Specifications Needle Used
7 x 3 (DY x 3)
Specifications Non United States Us Warranty
30 days parts and labor
Specifications Optional Needle Gauge
1/4 in | 3/8 in | 1/2 in | 3/4 in | 1 in | 1-1/4 in
Specifications Stitch Types
301
Specifications United States Us Warranty
90 Days labor on defects in materials and workmanship.
Specifications Voltage Options
110 V | 220 V
