Consew Model 745R-30P Sewing Machine
Consew Model 745R-30P Sewing Machine
SKU:SEW-5f5abc
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Consew Model 745R-30P Sewing Machine
$49.99
Quantity: 1
Claim Your Seller Account
Consew Model 745R-30P Sewing Machine
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

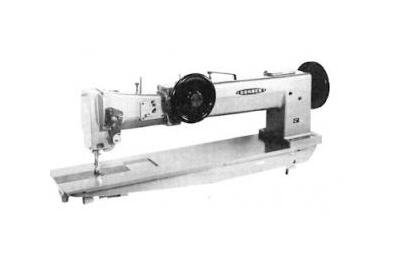

For comparison purposed Sew Pro 745-30 long arm double needle walking foot, jumbo bobbin. double needle long arm walking foot sewing machine without puller feed. Shows optional air foot lift, auto reverse pedal and needle positioner not included with Consew 745-30P basic mechanical model.
Product Specifications
Applications
Suitable for sewing extra heavyweight materials such as canvas, vinyl, leather, synthetics and various coated, laminated and rubberized fabrics.Designed for stitching such products as tents, tarps, awnings, truck covers, auto, marine and furniture upholstery, sails, matting, carpets, polishing wheels, mops, luggage, construction barriers, field covers, divider curtains, fabric structures and heavy bulky products.Suitable for stitching double seams and lap seaming.
Features
Compound feed, walking foot mechanism insures positive and even feeding of the material.Safety clutch protects the hooks from being damaged in case of accidental strainReverse feed operated by foot pedalCentralized arm lubricationReservoir-oiled hooks with micrometric control valvePresser foot locking leverBuilt-in bobbin winderPush button stitch regulatorExtra heavy-duty top shaft with four ball bearings for supportExtra large bobbins and vertical axis hooks for use of heavy thread; also allows for long operation between bobbin changesHigh liftFront handwheel (on 30" arm) allows for easy positioning of the needle(s)745RP is available with optional factory-installed, bottom driven, feed-synchronized puller. Puller mechanism is completely concealed and does not restrict work space.Workspace Long Arm
Included Accessories
Instruction Manual
Recommended Accessories
Organ 7X4 Leather Point Needles 100 for Singer Class 7 Sewing Machines Organ DYx3PD 100 Titanium Coated Needles Same as 7x1, 7x3, 794, 794H in PD Perfect Durability for Singer, Consew, Juki, Heavy Duty Sewing MachinesTechsew SR Speed Reducer Slows Down RPM on Industrial Sewing Machines Superior SR-2 Dual Speed Reducer 3" 6" 9" Pulleys, Install Between Motor & Handwheel Reliable SewQuiet 6000SM Variable Speed DC Servo Motor 110V or 220V Reliable ÜberLight 1000TL LED Task Lamp for Power Stands, No Clamp, 110V/220V Reliable 100SE Best Buy Operators Swivel Chair, 5 Non Roll Glide Feet Reliable 150SE Swivel Chair (Sew Ergo2) Non Roll Glides, Sewing Knitting Operator Reliable 200SE Sew Ergo Ergonomic Sewing Machine Operator Chair Non Roll Swivel Superior Dyno SO/Q Quart SewLube Sewing Machine Oil: Reservoir Pans, Refills Industrial Sewing Machine, Bag Closer or Serger Reservoir Pan Oil 1 Gallon Jug, Bonus Oiler Bottle Superior SO Sew Lube Sewing Machine Oil 1 Gallon for Reservoir Pans Superior SO5Gal SewLube Sewing Machine Oil 5 Gallon: Reservoir Pans Superior SO55 SewLube Sewing Machine Oil 55 Gallon Drum, Reservoir Pans
Specifications Arm Length
30 in
Specifications Bed Size
33-5/16 x 9-1/16 in | 846 x 230 mm
Specifications Bobbin Type
70141
Specifications Feeding Mechanism
Walking Foot
Specifications Hook Type
70140
Specifications Maximum Sewing Speed
1,500 SPM
Specifications Maximum Stitch Length
10 mm | 25/64 SPI
Specifications Motor Type
Clutch Motor | Servo Motor
Specifications Needle Bar Stroke
1-27/32 in
Specifications Needle Spacing
1/4 in
Specifications Needle Used
7 x 3 (DY x 3)
Specifications Non United States Us Warranty
30 days parts and labor
Specifications Number Of Needles
2
Specifications Optional Needle Gauge
1/4 in | 3/8 in | 1/2 in | 3/4 in | 1 in | 1-1/2 in
Specifications Stitch Types
301
Specifications United States Us Warranty
90 Days labor on defects in materials and workmanship.
Specifications Voltage Options
110 V | 220 V
Specifications Workspace Size
508 mm | 20 in
