Extra Heavy-Duty, Double Needle, Drop Feed, Needle Feed (compound Feed), Alternating Presser Feet Lockstitch Machine.
Product Specifications
Additional Information

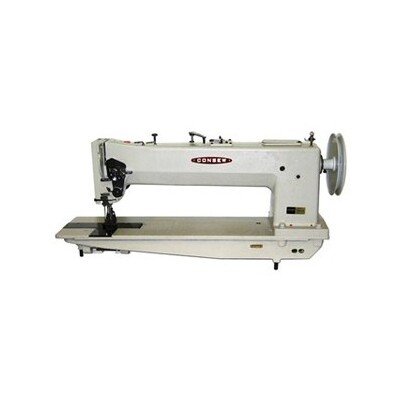

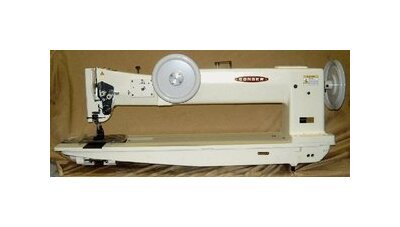

Picture shown is longer arm, but this model has 10" arm space between the needle and neck of the machine.
Applications
Suitable for sewing extra heavyweight materials such as canvas, vinyl, leather, synthetics and various coated, laminated and rubberized fabrics.Designed for stitching such products as tents, tarps, awnings, truck covers, auto, marine and furniture upholstery, sails, matting, carpets, polishing wheels, mops, luggage, construction barriers, field covers, divider curtains, fabric structures, and heavy bulky products.Suitable for stitching double seams and lap seaming.
Features
One Piece Upper Casting, Easy To Convert Between 1 And 2 Needle.Compound feed, walking foot mechanism insures positive and even feeding of the material.Safety clutch protects the hook(s) from being damaged in case of accidental strain.Reverse feed operated by foot pedalCentralized arm lubricationReservoir-oiled hook(s) with micrometric control valvePresser foot locking leverBuilt-in bobbin winderPush button stitch regulatorExtra heavy-duty top shaft with four ball bearings for support.Extra large bobbins(s) and vertical axis hook(s) for use of heavy thread; also allows for longer operation between bobbin changes.High liftFront hand-wheel (on 30" arm) allows for easy positioning of the needle(s).744RP/745RP are also available with optional factory-installed, feed-synchronized puller. Puller mechanism is completely concealed and does not restrict work space.
Included Accessories
Instruction Manual | Motor | Stand | Table
Recommended Accessories
Organ 7X4 Leather Point Needles 100 for Singer Class 7 Sewing Machines Organ DYx3F 100 Chrome Needles (Interchangeable with needle systems 7x1 7x3 794 794H PD) for Singer Consew Juki Etc Heavy Duty Sewing Machines Organ DYx3PD 100 Titanium Coated Needles Same as 7x1, 7x3, 794, 794H in PD Perfect Durability for Singer, Consew, Juki, Heavy Duty Sewing Machines* Superior Dyno SO/Q Quart SewLube Sewing Machine Oil: Reservoir Pans, Refills Superior SO Sew Lube Sewing Machine Oil 1 Gallon for Reservoir Pans Industrial Sewing Machine, Bag Closer or Serger Reservoir Pan Oil 1 Gallon Jug, Bonus Oiler Bottle Superior SO5Gal SewLube Sewing Machine Oil 5 Gallon: Reservoir Pans Superior SO55 SewLube Sewing Machine Oil 55 Gallon Drum, Reservoir Pans Goldstar GS-50 Diode LED Sewing Machine Lamp Light with Clamp L.E.D-O-Brite LED28 Task Lamp Light 28 LED Bulbs Honeycomb 2/48W Equiv Reliable ÜberLight 1000TL LED Task Lamp for Power Stands, No Clamp, 110V/220V Grace 01-11961 Luminess 5-6'+ LED Floor Lamp Overhead Light Bar on Casters Techsew SR Speed Reducer Slows Down RPM on Industrial Sewing Machines Superior SR-2 Dual Speed Reducer 3" 6" 9" Pulleys, Install Between Motor & Handwheel
Specifications Arm Length
10 in
Specifications Arm Shape
Centralized Arm Lubrication
Specifications Bed Size
20-7/16 x 9-1/16 in | 519 x 230 mm
Specifications Bobbin Type
70141
Specifications Clearance Under Foot
20 mm
Specifications Feeding Mechanism
Walking Foot
Specifications Function
Standard
Specifications Hook Type
70140
Specifications Maximum Presser Foot Clearance
25/32 in
Specifications Maximum Sewing Speed
1,500 SPM
Specifications Maximum Stitch Length
25/64 SPI
Specifications Needle Bar Stroke
1-27/32 in
Specifications Needle Spacing
1/4 in
Specifications Needle Used
7 x 3 (DY x 3)
Specifications Non United States Us Warranty
30 days parts and labor
Specifications Number Of Needles
2
Specifications Optional Needle Gauge
1/4 in | 3/8 in | 1/2 in | 3/4 in | 1 in | 1-1/2 in
Specifications Power Stand Type
Knocked Down (KD) Stand
Specifications Stitch Types
301
Specifications United States Us Warranty
90 Days labor on defects in materials and workmanship.
Specifications Voltage Options
110 V | 220 V
Specifications Workspace
Standard
Specifications Workspace Size
254 mm | 10 in
