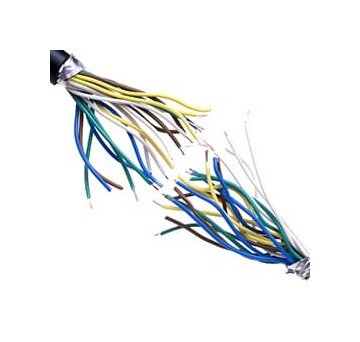

Consolidated Shielded Power Limited Tray Cable

Name: Consolidated Shielded Power Limited Tray Cable
Brand: Consolidated Electronic Wire & Cable
SKU: POW-9f4768
Price: 149.99 USD
Availability: OutOfStock

SKU:POW-9f4768

Reliable Consolidated Shielded Power Limited Tray Cable for industrial applications, with individual shielding and ASTM B-33 compliant annealed tin copper conductors. UL PLTC, CL3, CM certified and RoHS compliant.

$149.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Consolidated Shielded Power Limited Tray Cable is designed for industrial applications requiring reliable power transmission. With a jacket thickness of 0.063 inches and a nominal outside diameter of 0.776 inches, this cable features individual shielding for enhanced signal integrity. The 300V cable is constructed with annealed stranded tin copper conductors meeting ASTM B-33 standards. It is sunlight resistant, with a gray PVC jacket offering insulation thickness ranging from 0.016 to 0.032 inches. Certified to UL PLTC, CL3, and CM standards, this cable is suitable for power limited circuits, industrial control systems, and audio systems. RoHS compliant and temperature rated from -20°C to 105°C, this cable ensures safety and performance in diverse environments.

Product Specifications

Applications Applications

Power limited circuitsIndustrial control systemsAudio systems

Note Note

All specifications are subjected to change without prior notice.

Technical Specs Brands

Consolidated Electronic Wire & Cable

Technical Specs Certification

Restriction of Hazardous Substances (RoHS) | Underwriter Laboratories (UL)

Technical Specs Color Code

Black | Red

Technical Specs Construction

22 (7 x 30) Tinned Copper (TC)

Technical Specs Construction Product Regulation Cpr

27PR

Technical Specs Insulation

Polyvinyl Chloride (PVC)

Technical Specs Jacket Thickness

0.063 in

Technical Specs Nominal Outside Diameter Od

0.776 in

Technical Specs Packaging

Standard Packaging 500' and 1000' reelsCustom and bulk sizes available upon requestMinimums may apply

Technical Specs Shielding

Individually Shielded

Consolidated Shielded Power Limited Tray Cable
