Constant Force Electric Cylinder - 198N | Dunkermotoren BG 65Sx50

Name: Constant Force Electric Cylinder - 198N | Dunkermotoren BG 65Sx50
Brand: Dunkermotoren
SKU: ELE-1aab12
Price: 699.99 USD
Availability: OutOfStock

SKU:ELE-1aab12

High-performance 198N Constant Force Electric Cylinder by Dunkermotoren for precise industrial applications. Meets CE and UL standards.

$699.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

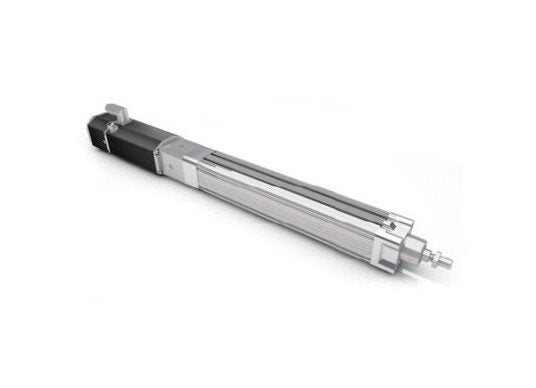

The 198 Newton (N) Constant Force Electric Cylinder by Dunkermotoren offers precision and power for industrial applications. Equipped with a brushless DC servomotor and ball screw spindle, this cylinder ensures smooth operation and precise positioning. With a maximum traverse speed of 825 mm/s and peak force of 526 N, it delivers high dynamic performance. Meeting European Conformity (CE) and Underwriters Laboratories (UL) standards, this cylinder provides reliability and efficiency for institutional buyers.

Product Specifications

Additional Information Additional Information

Compact and space savingEasy configuration of max. 14 positions (PI motor)Several BUS interfaces availablePLG 52 on request

Features Features

IO modeCANopen version availableService interfaceForce modePrecise positioningMaintenance freeHigh efficiencyLow noiseSelf-locking ratios availableHigh forceHigh dynamicDigital inputsDigital outputsAnalog inputsOscilloscope software availableCondition monitoringProgrammableVibration resistance

Note Note

Not applicable for motions on mechanical stop.

Technical Specs Brands

Dunkermotoren

Technical Specs Constant Force

198 N

Technical Specs Feedback Integrated

4096 cycles/rev

Technical Specs Industry Standardscertifications

European Conformity (CE) | Underwriters Laboratories (UL)

Technical Specs Maximum Acceleration

6 mm/sÂ²

Technical Specs Maximum Traverse Speed

825 mm/s

Technical Specs Motor Type

BG 65Sx50

Technical Specs Nominal Current

7 A

Technical Specs Nominal Direct Current Dc Voltage

40 to 48 V

Technical Specs Peak Current 2 Second S

20 A

Technical Specs Peak Force

526 N

Technical Specs Protection Class

Ingress Protection (IP54S)

Technical Specs Repeatability

0.01 mm

Technical Specs Spindle Pitch

12.7 mm

Technical Specs Spindle Version

BN (Ball Screw)

Technical Specs Stroke Length

100 mm | 200 mm | 300 mm | 400 mm | 500 mm | 600 mm
