Continuous Analyzer for Biogas Recovery & Processing - Methane + Oxygen + Carbon Dioxide; NEMA 4 cabinet with Hazardous Area Purge System
Continuous Analyzer for Biogas Recovery & Processing - Methane + Oxygen + Carbon Dioxide; NEMA 4 cabinet with Hazardous Area Purge System
SKU:BYI-75d199
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Continuous Analyzer for Biogas Recovery & Processing - Methane + Oxygen + Carbon Dioxide; NEMA 4 cabinet with Hazardous Area Purge System
$49.99
Quantity: 1
Claim Your Seller Account
Continuous Analyzer for Biogas Recovery & Processing - Methane + Oxygen + Carbon Dioxide; NEMA 4 cabinet with Hazardous Area Purge System
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

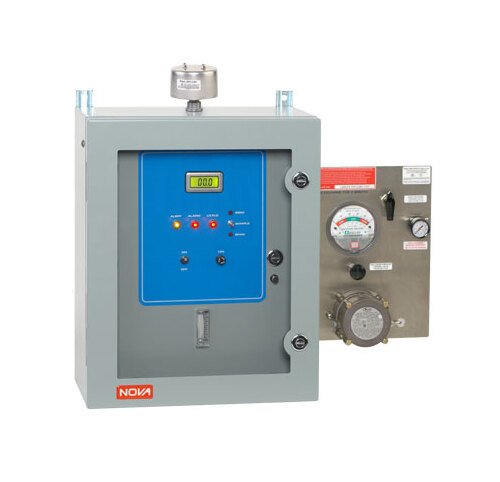

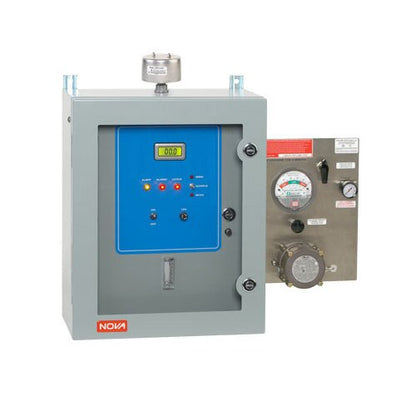

The Nova 920 Series analyzers have been designed for monitoring recovered and processed gases from biogas installations. The Model 923 is specifically designed for continuous oxygen (O2), carbon dioxide (CO2), and methane (CH4) measurement. The sample conditioning system continuously removes moisture from the wet sample gas without the need for cooling water, compressed air, or failure-prone thermoelectric elements. The 920 Series comes complete with pre-filter, sample pump, flow meter, continuous moisture removal system, long-life electrochemical O2 sensor, infrared CO2 & HC's detector (as CH4), low flow sensor, alarm relay contacts, and 4-20mA output. Sensors / detectors are mounted in an internal dedicated enclosure which is temperature-controlled to reduce drift due to ambient temperature swings. The internal sensor enclosure is removable to allow quick field change of sensors. The infrared detector can be cleaned in the field if necessary by the on-site technician. Cabinet: NEMA 4 cabinet with Hazardous Area Purge System; available for Class 1 Div1 & Div2 hazardous areas
Product Specifications
Specifications Ranges Available
0-25.0 % O2 | Any range between 0-50.0% and 0-100.0% CH4, CO2
