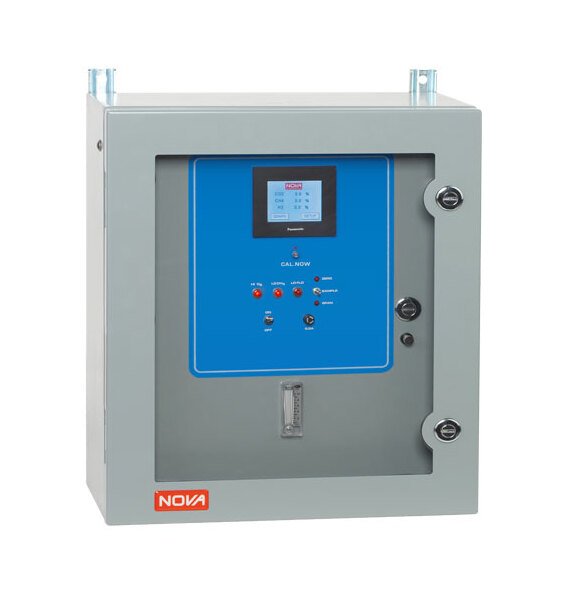

The Nova 970 Series Syn-Gas Analyzer System has been designed with the flexibility and robustness required in the experimental and developmental environments that characterize syn-gas applications. The Nova 970 Series utilizes high-stability infrared detectors for the simultaneous measurement of CO, CO2, and CH4. In addition, the analyzer can also be supplied with a non-consumable, long-life thermal conductivity cell for H2 that compensates for the interference effects of CO, CO2, and CH4. This ensures that H2 will always read correctly regardless of the background gas composition. A non-depleting paramagnetic sensor is used for O2 analysis. All sensors/detectors are temperature-controlled or temperature-compensated for maximum analytical stability. Auto calibration functionality allows easy calibration without user intervention. The included Serial Output Package allows connection of analyzer to personal computers via a choice of USB/RS-232/RS-485. Data recording software is also included.
Product Specifications
Applications 0
For continuous monitoring of any combination of gases such as oxygen (O2), methane (CH4), carbon dioxide (CO2), carbon monoxide (CO) and hydrogen (H2) for experimental, developmental and industrial processes including syn-gas atmospheres.
Calibration 0
Ambient air for O2 and to zero all other gasesAnalyzed calibration gas with representative concentrations for span of all other gases
Features 0
Sensitive infrared detectors for CO, CO2 and CH4Thermal conductivity cell for H2Non-depleting paramagnetic oxygen sensorSensors/detectors temperature controlled or compensated for maximum analytical stabilityH2 reading is compensated for the interference effects of the other gases measuredHigh ranges on each channel availableTouch-screen display for gas readingsBuilt-in sample pump or pressure regulatorAutomatic calibration & serial output packageIsolated 4-20 mA analog recorder outputsDurable internal lines & sample componentsAutomatic moisture removal system included
Options 0
Calculations performed on gas readings such as gas ratios and heating value of flammable gasesHi/Low gas, low flow and other alarms availableSample conditioning systems available for acidic gas and dustCabinet purge system available for use in hazardous areasOutdoor packages available for operation from -22 to 158 °F (-30 to 70 °C)Cabinet coolers can be fitted to most modelsHeated filters and high temperature probes
Specifications Accuracy Repeatability
± 1.5% of full scale on all gases
Specifications Alarms
High and/or low alarm contacts available, relay contacts SPDT 5A @ 220 VAC rating.
Specifications Ambient Temperature Range
40-104 °F (4 to 40°C). Optional -22 to 158 °F (-30 to 70 °C) with Outdoor Packages
Specifications Drift
Less than 2% of full scale per month
Specifications Linearity
± 1.5% of full scale
Specifications Method Of Detection
NDIR infrared detector for CO, CO2 and CH4 | Thermal conductivity cell for H2
Specifications Output Options
Isolated 4-20 mA standard | RS232, RS485, MODBUS®, Ethernet outputs optional
Specifications Power
115 VAC 60 Hz (220 VAC 50 Hz available)
Specifications Ranges Available
0-2.0%, 0-50.0%, 0-100.0% CH4 | 0-2.0%, 0-50.0%, 0-100.0% CO | 0-2.0%, 0-50.0%, 0-100.0% CO2 | 0-2.0%, 0-50.0%, 0-100.0% H2
Specifications Resolution
0.1% for all gases
Specifications Response Time T 90
20-30 seconds to 90% step change
Specifications Size Weight
24" H x 24" W x 10" D @ 90 lbs (61 x 61 x 25 cm @ 20 kg)
